ULOW-E2

Intelligent low-temperatur radiator.

Perfect comfort concerning heat at a supply temperature even lower than 40°C.

Heat-Output-Calculator
Brochure Mounting Instruction Instruction Manual

Videos

red dot award

At the beginning of March the visionary E2 Technology design won the 2013 red dot award for product design.

Every year this coveted, internationally renowned trophy singles out innovative design products. These products are submitted from all around the world and are nominated by an international jury of leading experts, in an evaluation process that takes several days.

The following videos provide interesting information about the E2-Technology.





benefits

concept

frame conditions

current market situation

conclusion

total video

The E2-Technology

Unique concept.

The low temperature radiator ULOW-E2 combined with E2 technology is a unique concept that gives high heat outputs even with low water temperatures without compromising style. The ULOW-E2 low temperature radiator can easily be used at a supply temperature of even lower than 40°C with modern and conventional energy sources, such as oil or gas but also with renewable energy sources such as heat pump or a solar spring.

The new E2-Technology

Visible: State-of-the-art

Not just the high efficiency is a huge advantage of the E2-technology but also the unique and successful design points out: That’s a high-tech heat emission system, which introduces a new age and will be the new generation of heat emission.

Innovative TOUCHPAD



The key feature of the ULOW-E2 is the fans, which assist the natural convection. The intelligent control panel will automatically switch between static and dynamic operation depending upon the room condition. The radiator is at its highest efficiency during static operation, therefore the fans will only be active when necessary.

E2 Touchpad

E2 Touchpad - control panel Thermostat head

E2 Touchpad - control panel Temperature scale THERMOSTAT

E2 Touchpad - control panel Main switch ON/OFF

 Heating icon, RED

 Cooling icon, BLUE

 UP button

DOWN buton

 Temperature icon

 Boost button

Heating/Cooling button







Efficient and intelligent



Fans for optimized convection  The ULOW-E2 provides radiant heat via the water filled front panel, however enhanced convection will also come from the fans. Due to the intelligent control between static and dynamic operation heat-up times will be rapid. Maximum thermal comfort can be achieved even with water supply temperatures as low as 40°C.









Proven central connection technology

Centrally connected technology

Flexible pre-piped construction methods are here to stay, therefore the ULOW-E2 central connection will make a significant contribution to reduce the installation costs. This will give more freedom for design and planning.

Installation and service

The ULOW-E2 is supplied as a ready-to-fit product and is as easy, flexible and economical to install as a standard radiator.

All installation devices are freely accessible. This method of installation saves money and time at every service and cleaning. The cleaning at an ULOW-E2 is the same than at every other radiator. The fans are removable to the right and to the left.

High Efficiency

High saving potential

In comparison to many other products in the current market the ULOW-E2 has high energy saving potential due to the possible reduction of the water temperature.

With E2-technology the entire heating system can be operated a lot more efficient.

Rapid response heating

Fast heat emission

Due to a high proportion of radiant heat as well as convection demand optimization from the fans, the ULOW-E2 ensures rapid heat-up times. In winter or night setback periods heat losses are rapidly compensated.

Ideal for renovation and new construction

Ideal for renovation and new construction

After the installation of a modern heating source the conditions are perfect for the use of ULOW-E2. In a reconstructed building the use of low temperature radiator ULOW-E2 is recommended, it is also recommended for a new buildings and can be used with a combination of other heat emitters.

Intelligent Control

Intelligent Control

The key feature of the ULOW-E2 is the fans, which assist the natural convection. The intelligent control panel will automatically switch between static and dynamic operation depending upon the room condition.

The radiator is at its highest efficiency during static operation, therefore the fans will only be active when necessary.

High percentage of radiant heat

High percentage of radiant heat

In comparison to a fan convector the ULOW-E2 benefit from a much higher percentage radiant heat, this is due to the water filled panels at the front and back.

Quick and Easy Installation

Quick and Easy Installation

The ULOW-E2 is supplied as a ready-to-fit product and is as easy, flexible and economical to install as a standard radiator.

FAQ

The low temperature radiator ULOW-E2 combined with E2 technology is a unique concept that gives high heat outputs even with low water temperatures without compromising style.

When working as a heater, what conditions will the fans run?

Regardless of whether it is “Comfort” or “Boost mode”, the supply flow temperature must be at least 3°C higher than the measured room temperature, and at the same time the measured room temperature has to be lower than the pre-set target room temperature. If either of these conditions are not met then the fans will not activate / switch off.

When working as a cooler, what conditions will the fans run?

The supply flow temperature must be 3°C lower than the measured room air temperature, and at the same time the measured room temperature has to be higher than the pre-set target room temperature. If either of these conditions are not met the fans will not activate / switch off.

Important parameter settings

The default factory settings such as duration of boost operation, offset of the measured room air temperature and/or offset between output flow and room temperature can be changed to suit individual user requirements.

The ULOW-E2 advantages at a glance

Overview of Models

The ULOW-E2 is available in the following dimensions.

Dimensions (mm)

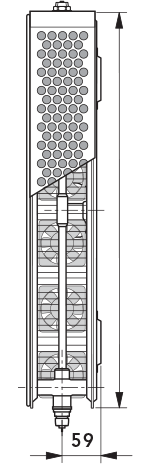

Dimensions ULOW-E2 Dimensions ULOW-E2

double-layer with two convection sheets

Height Height 500 600 900
Width Length 400 to 2000
Depth Depth 107

Steps: all overall length starting with 400 mm available in steps of 200 mm

Connections Connections: 4 x G ½ internal thread and 2 x G ¾ external thread, underside centre.
Thermostat valve top right (can be swapped to top left problem-free).

Operating Pressure Maximum positive operating pressure: 10 bar

Operating Temperatur Maximum operating temperature: 60 °C (because of the fan units)

Safety clas Safety class: IP24

Technical Information

The ULOW-E2 LOW TEMPERATUR RADIATOR is - with its welded in set of T-shaped valves - suitable for double-pipe installations as well as single-pipeinstallations, using a single-pipe manifold. Additionally to the central connection from the bottom, the sophisticated design makes possible other connections used at compact radiators, such as the single-sided and two-sided connection.

Radiators are delivered ready for double-pipe installation and with a factory-adjusted kv-setting, appropriate to the radiator output.

For district heating installations with a big difference between water supply and return temperature, a valve unit that allows a precise and stepless adjustment is available on request.

kv-value chart

kv-value chart

Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.

Double-pipe operation - Adjustment tips for built-in valves

E2-Technology

Setting instructions:
VOGEL&NOOT valve radiators are factory-fitted for double-pipe installations. Each individual radiator is fitted with a pre-adjusted valve insert, appropriate to the radiator output. The preset kv-value is also marked in colour on the front surface.

Please note:
Should customised adjustments be required, the pre-set kv-values can be altered as needed. Swapping the right-hand side built-in valve to the left-hand side is no problem at all at any time. Radiator are delivered with protective caps. After removing the protective cap (pos. A) the following thermostat heads can be fitted directly to the builtin valve (pos. B): “RA 2000”, “RAW” by Danfoss, “VK” by Heimeier, “D” by Herz, “thera DA” by MNG and “UNI XD” by Oventrop.

Single-pipe operation - Factory-adjusted built-in valve

E2-Technology

In single-pipe operation, setting the built-in valve on N.

The radiator will be delivered with a protective cap. After removing the protective cap (item A) the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“ and „RAW“ by Danfoss, „VK“ by Heimeier, „theraDA“ by MNG, as well as „UNI XD“ by Oventrop.
