STANDARD CURVED

An eye-catching, elegant design that brings comfort into your bathroom.

The discreet horizontal heating pipes are ideal for hanging and drying hand towels and bath towels.
Heat-Output-Calculator
Brochure

Overview of models

The bathroom radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

Quality marks bathroom radiators

Dimensions and models:

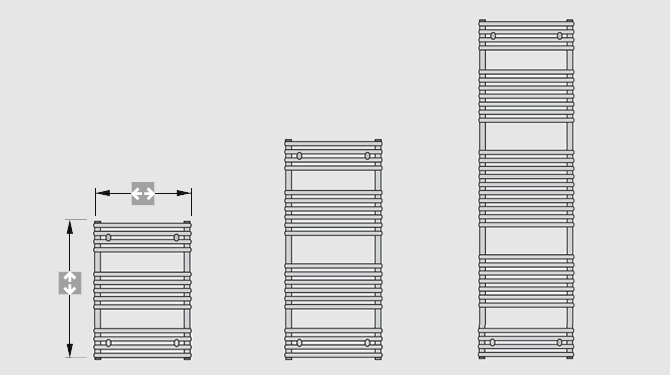

STANDARD CURVED overview of models

Width Lenght 498, 596, 742, 887
Height Height 714 1134 1764



Connections Connections: 4 x internal thread G 1/2

Test positive pressure Test overpressure: 13 bar

Maximal positive operating pressure Max. positive operating pressure: 10 bar

Maximal operating temperature Max. operating temperature: 110 °C



Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

Connection examples

STANDARD CURVED connection examples

flow

  Flow

Return

  Return

Vent plug

  Vent plug

Electric connection

  Electric connection

Boss spacing  Boss spacing

Height  Height minus 168 mm

Connections  Connections: 4 x internal thread G 1/2

Test positive pressure  Test overpressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C



A special adapter (chrome-plated) should be used for the electric heating insert with the STANDARD CURVED design radiator!

Accessory: PTC electric heating element
STANDARD CURVED radiators fitted with an electric heating element can also be used at times when the regular heating system is switched off. It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements.



Dimensions [mm]

STANDARD CURVED dimensions





Accessories

accessories for our curved bathroom radiator: hand towel ring and holder

CE Marking and Declaration of Performance (DoP)

The European Union Construction Products Regulation requires that building products, including the radiators and the convectors without an integrated heat source, must be CE-marked in accordance with relevant harmonized product standards EN 442 and the Declaration of Performance (DoP). The CE marking means that each product meets the manufacturing process requirements of the product according to the provisions of manufacture, testing and delivery. The regulation came into force on July 1st, 2013.

Rettig ICC products are CE-marked and the Declaration of Performance of Rettig ICC and its reference documents, Annexes D and Annexes M describing the detailed performance of the products, are available according to the Construction Products Regulation.  See the current DoP of RICC attached and the linked document files.


VDI-Dataset

VDI-DATASET

Download our new VDI-Dataset "Radiators and Fanconvectors" from the BDH-Portal.
