Fits all old connections.

The perfect combination of function and aesthetic design.
Brochure Output calculator

Overview of models

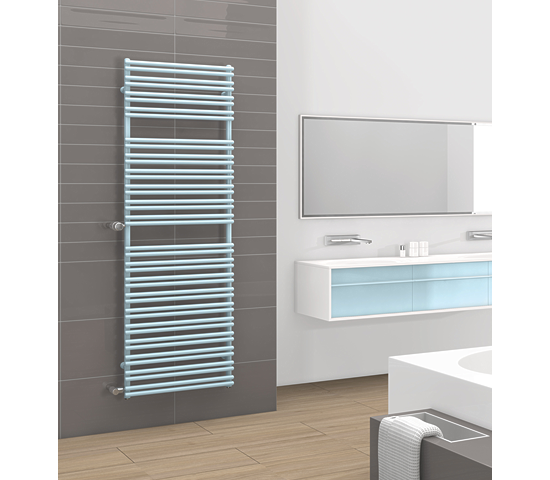

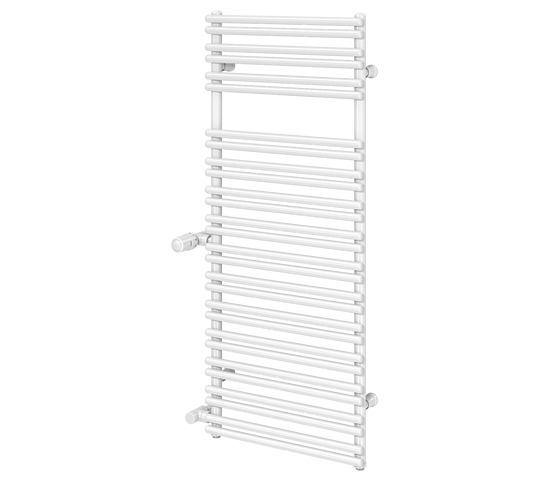

Classic aesthetics and a timeless use of lines are demonstrated in the VOGEL&NOOT BAWA replacement radiator model. The pipes are positioned in pairs and therefore produce a balanced unit, which helps rooms achieve a restrained ambience.

These high quality design radiators are made in Austria. The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

quality marks

Different dimensions and varying models

BAWA replacement overview of models


Width  Lenght 500, 600
Height  Height 1200 1800

Connections  Connections: 2 x G 1/2 bottom, 2 x G 1/2 on the side, left or right, internal thread
  and 1 x G 1/4 internal  thread  (for vent plug)

Test positive pressure  Test overpressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C


Connection diagram (example)

Connection example


This REPLACEMENT design radiator is available in 71 different colours.


  • RAL9016 Traffic White
  • RAL 9010 Pure White
  • RAL 9001 Cream White
  • RAL 250-2 Lemon Glow
  • RAL 1023 Traffic Yellow
  • RAL 1012 Lemon Yellow
  • RAL 1004 Golden Yellow
  • RAL 1027 Curry
  • RAL 6034 Pastel Turquoise
  • RAL 5014 Pastel TurquoisePigeon Blue
  • RAL 5009 Azure Blue
  • RAL 5015 Sky Blue
  • RAL 5017 Traffic Blue
  • RAL 5022 Night Blue
  • RAL 5002 Ultramarine Blue
  • RAL 5001 Green Blue
  • RAL 9005 Jet Black
  • RAL 7021 Black Grey
  • RAL 1033 Dahlia Yellow
  • RAL 2003 Pastel Orange
  • RAL 2004 Pure Orange
  • RAL 3000 Flame Red
  • RAL 3005 Wine Red
  • RAL 4002 Red Violet
  • RAL 4007 Purple Violet
  • RAL 4008 Signal Violet
  • RAL 290 70 20 Mauve Haze
  • RAL 290 40 45 Mystic Purple
  • RAL 4009 Pastel Violet
  • RAL 3015 Light Pink
  • RAL 3014 Antique Pink
  • RAL 6019 Pastel Green
  • RAL 120 80 60 Modern green
  • RAL 120 70 70 E-Green
  • RAL 150 60 60 Green Apple
  • RAL 6033 Mint Turquoise
  • RAL 6004 Blue Green
  • RAL 8017 Chocolate Brown
  • RAL 8019 Grey Brown
  • RAL 040 80 05 White Coffee
  • RAL 7035 Light Grey
  • RAL 7040 Window Grey
  • RAL 7001 Silver Grey
  • RAL 7037 Dusty Grey
  • RAL 7030 Stone Grey
  • RAL 7013 Brown Grey
  • RAL 7015 Slate Grey
  • RAL 7016 Anthracite Grey
  • RAL 7024 Graphite Grey
  • RAL 9006 White Aluminium
  • RAL 9007 Grey Aluminium

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!


  • S0075 Jasmine
  • S0091 Pergamon
  • S0094 Natura
  • S0087 Bahama Beige
  • S0084 Anemone
  • S0077 Magnolia
  • S0164 Banana
  • S0088 Manhatten

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!


  • S0145 Creme White
  • S0142 White Textured
  • S0141 Black Textured
  • S0147 Anodic Brown
  • S0148 Anodic Black
  • S0149 Anodic Natura
  • S0201 Metal Alu
  • S0102 Metal Grey
  • S0146 Anodic Bronze
  • S0104 Metal Black
  • S0144 Brown Grey
  • S0143 Light Grey

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

CE Marking and Declaration of Performance (DoP)

The European Union Construction Products Regulation requires that building products, including the radiators and the convectors without an integrated heat source, must be CE-marked in accordance with relevant harmonized product standards EN 442 and the Declaration of Performance (DoP). The CE marking means that each product meets the manufacturing process requirements of the product according to the provisions of manufacture, testing and delivery. The regulation came into force on July 1st, 2013.

Rettig ICC products are CE-marked and the Declaration of Performance of Rettig ICC and its reference documents, Annexes D and Annexes M describing the detailed performance of the products, are available according to the Construction Products Regulation.  See the current DoP of RICC attached and the linked document files.

Radiator type
Heat emission
