MARANOA eLINE

MARANOA eLINE

• Available with left-side and right-side connections
• Exact programming
• High-quality materials
• Practical warming-up of textiles and towels

Overview of Models

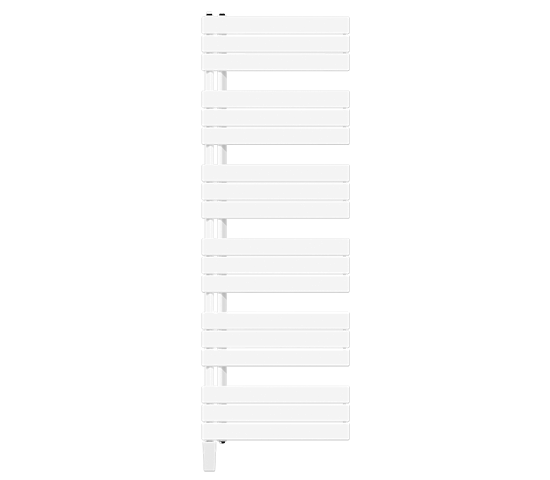

The electric radiator MARANOA eLINE is available with different dimensions.

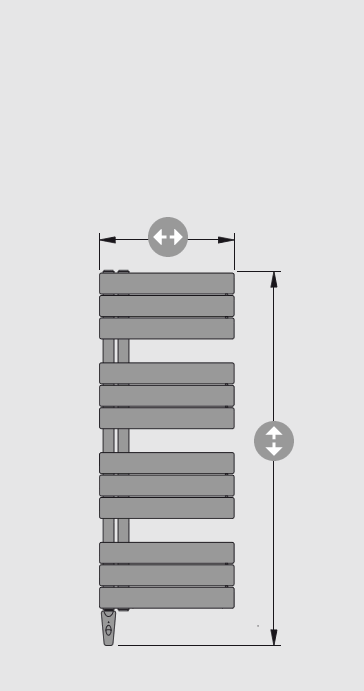

  • Nominal height 1130 mm

     height  Height: 1250
     Length  Length: 450
     Depth  Depth:* 120,5 - 130,5
     Nominal output  Nominal output:**  500 W

    Data in mm
    * incl. wall clearance
    ** at 60°C

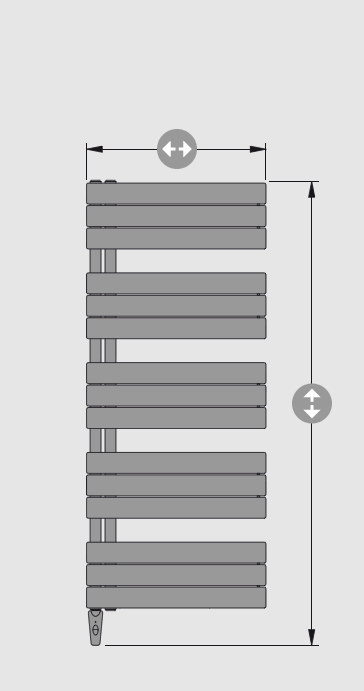

  • Nominal height 1430 mm

     height  Height: 1550
     Length  Length: 600
     Depth  Depth:* 120,5 - 130,5
     Nominal output  Nominal output:**  750 W

    Data in mm
    * incl. wall clearance
    ** at 60°C

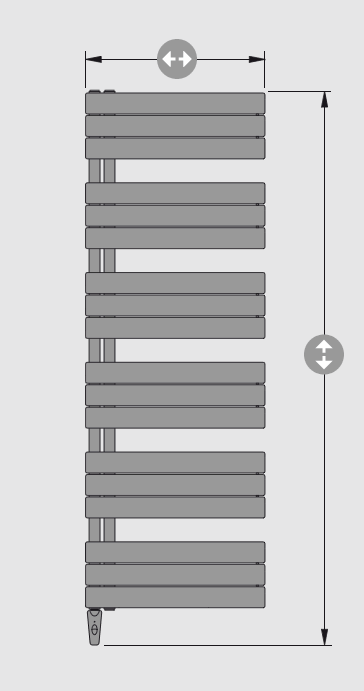

  • Nominal height 1730 mm

     Height  Height: 1850
     Length  Length: 600
     Depth  Depth:* 120,5 - 130,5
     MARANOA eLINE - Nominal output  Nominal output:**  1000 W

    Data in mm
    * incl. wall clearance
    ** at 60°C

The VOGEL&NOOT electric heating meets the requirements for the environmentally sound design of individual room heating units. This electric radiator is also ÖVE-tested.

Technical Information

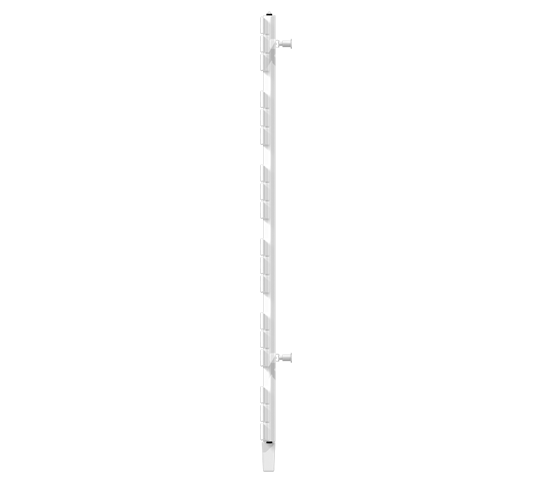

The electric radiators of the MARANOA eLINE are elegant design and bathroom radiators with integrated electric heating.

Design:
• Horizontal, flat, stacked heating tubes 70 x 11 mm
• Vertical, triangular profile collection tubes
• Filled with a water-glycol mixture

Electric connection: Wired ready for connection (insulated cable endings) for 230 V grid connections through flush sockets, protection class II, IP 44, cable length 1,2 m.

electrical connection

Blue: Neutral conductor
Brown (or other colour): Conductor
Black: Pilot cable

Caution: The black cable marked PILOT must not be connected to the EARTH and must be insulated.

Basic serial package:
• Wall fixing set with screws and dowels
• Installation instructions
• Heating rod
• Programmable radio room thermostat
• White receiver

Important: This radiator must be connected by a qualified electrician!

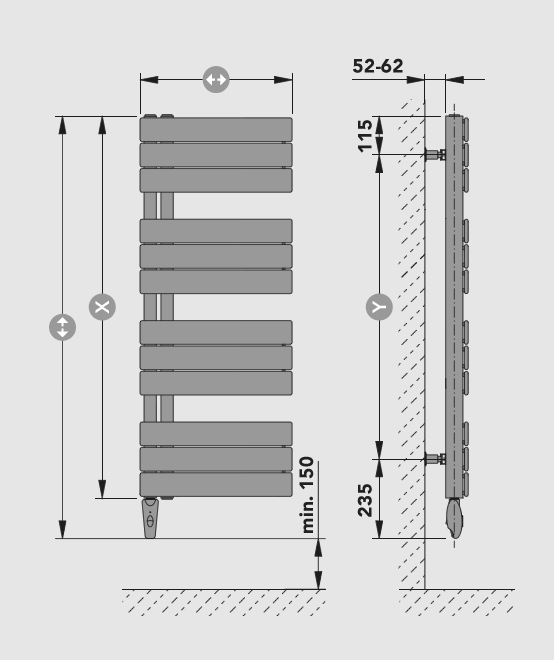

Dimensions at a nominal height of 1130 mm

MARANOA eLINE dimensions

Height 1250
Length 450
x-dimension 1130
y-dimension 900

Data in mm

Dimensions at a nominal height of 1430 mm

MARANOA eLINE dimensions

Height 1550
Length 600
x-dimension 1430
y-dimension 1200

Data in mm

Dimensions at a nominal height of 1730 mm

MARANOA eLINE dimensions

Height 1850
Length 600
x-dimension 1730
y-dimension 1500

Data in mm

The VOGEL&NOOT electric heating meets the requirements for the environmentally sound design of individual room heating units. This electric radiator is also ÖVE-tested.

Accessories

Programmable RADIO ROOM THERMOSTAT with boost function
The basic serial features of the MARANOA SPEED AIR eLINE electric radiators include this programmable radio room thermostat.

programmable RADIO ROOM THERMOSTAT

CE Marking and Declaration of Performance (DoP)

The European Union Construction Products Regulation requires that building products, including the radiators and the convectors without an integrated heat source, must be CE-marked in accordance with relevant harmonized product standards EN 442 and the Declaration of Performance (DoP). The CE marking means that each product meets the manufacturing process requirements of the product according to the provisions of manufacture, testing and delivery. The regulation came into force on July 1st, 2013.

Rettig ICC products are CE-marked and the Declaration of Performance of Rettig ICC and its reference documents, Annexes D and Annexes M describing the detailed performance of the products, are available according to the Construction Products Regulation.  See the current DoP of RICC attached and the linked document files.
