Overview of models
Classic aesthetics and a timeless use of lines are demonstrated in the VOGEL&NOOT BAWA-T replacement radiator model. The pipes are positioned in pairs and therefore produce a balanced unit, which helps rooms achieve a restrained ambience.
These high quality design radiators are made in Austria. The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.
Different dimensions and varying models
Connections: 2 x G 1/2 on the top, 2 x G 1/2 bottom, 2 x G 1/2 on the side,
left or right, internal thread
Test overpressure: 13 bar
Max. positive operating pressure: 10 bar
Max. operating temperature: 110 °C

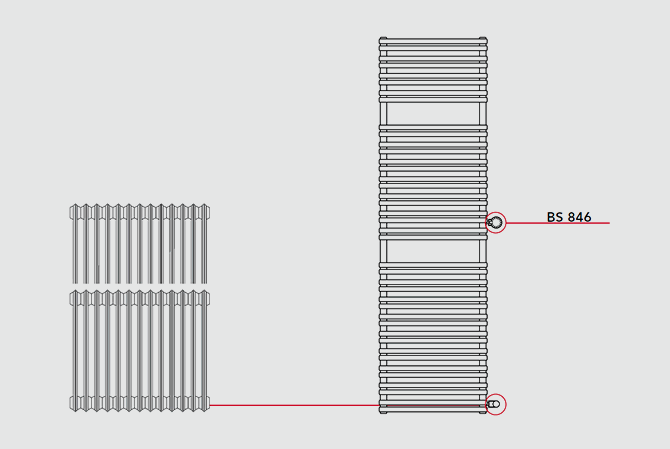

Connection diagram (example)
