Horizontal design

Aesthetically sophisticated design, combined with technologically perfect heating.
Conceived with all areas of installation and use in mind.
Note: This is a non-stocked item - to order only.

Overview of models

The convectors and heating walls manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

Quality marks

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type KH

Overview of models Overview of models

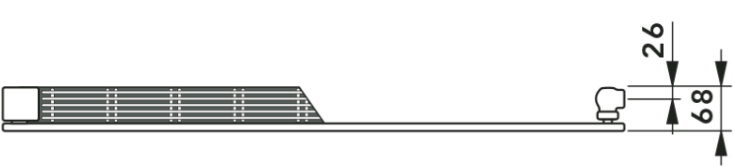

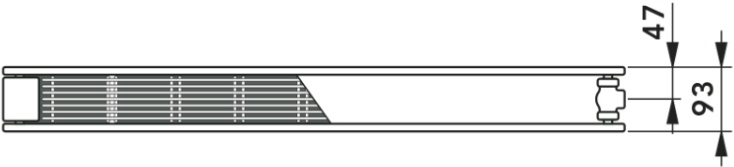

Model Type 10 Type 20
Height  Height 358 430 502 358 430 502
574 646 790 574 646 790
Height  Length 500 – 2400 mm (for special overall lengths see output charts)
Increments 100 mm (for an overall length of 1400 mm and greater: 200 mm)

Connections  Connections: 2 x internal thread G 1/2", welded-in for supply and return. Vent and drain plugs (or dummy plug) are factory sealed and are fitted according to the customer's specifications.

5 bar  Test overpressure (standard design): 5 bar

8 bar  Max. positive operating pressure (high-pressure design): 8 bar

Maximal operating temperature  Max. operating temperature: 110 °C

Technical information

Get an overview of the most important technical data.

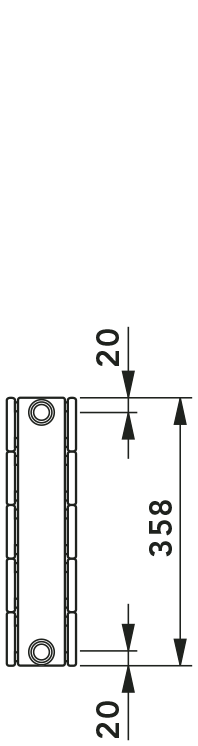

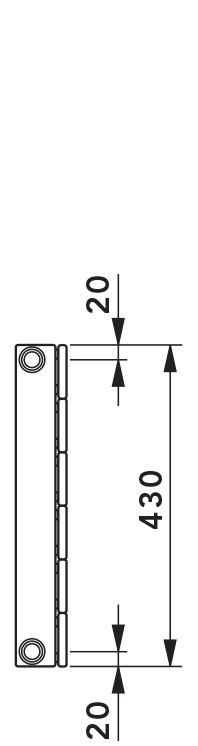

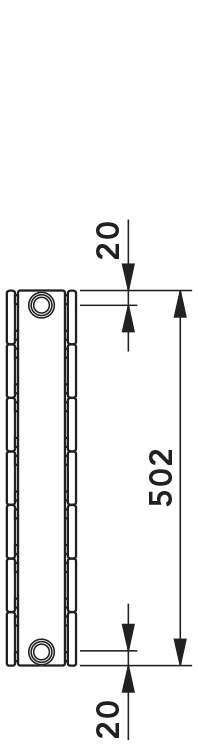

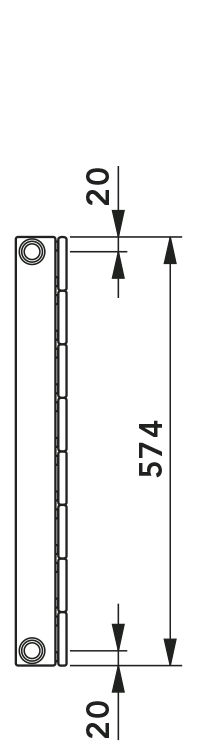

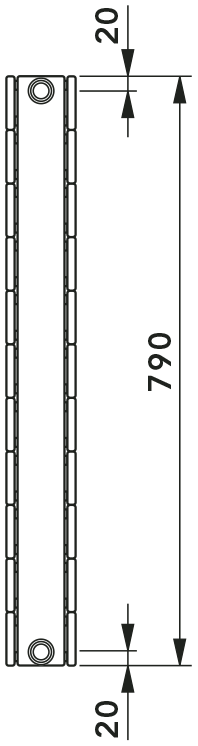

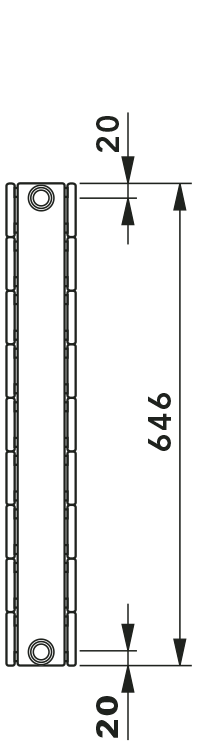

KH connection dimensions [mm]

KH connection dimensions KH connection dimensions KH connection dimensions KH connection dimensions KH connection dimensions KH connection dimensions
Height  Height 358 430 502 574 646 790
Boss spacing  Boss spacing 318 390 462 534 606 750

Colours

The KONTEC horizontal design convector is available in 72 different colours.
Please note: These colour options are to order only - approximately 6-8 week delivery time.
