T6-VONOPLAN

High performance, rapid room heating and even heat distribution.
Decisive advantages with the T6.

The T6: revolution in radiators

Thanks to innovative centre-connection technology and optimum energy efficiency, the T6 sets the standard for room heating, comfort and ease of use - advantages that will win over any customer!

Connection advantage

Diagonal or in-line connection via a standardised connection position.

T6 connection advantage

Selection advantage

Even if the pipework is laid in advance, the choice of radiator can be changed at any time.

T6 selection advantage

Positioning advantage

Flexible thermostat position as desired, thanks to patented pipe guides.

T6 positioning advantage

Installation advantage

Cost-effective, attractive and safe installation options without limitations.

T6 installation advantage

Distance advantage

Flexible choice of models with a standardised distance between the connection and the wall.

T6 distance advantage

Assembly advantage

The pipework can be laid in advance without the radiator to allow undisturbed progress of work.

T6 assembly instructions

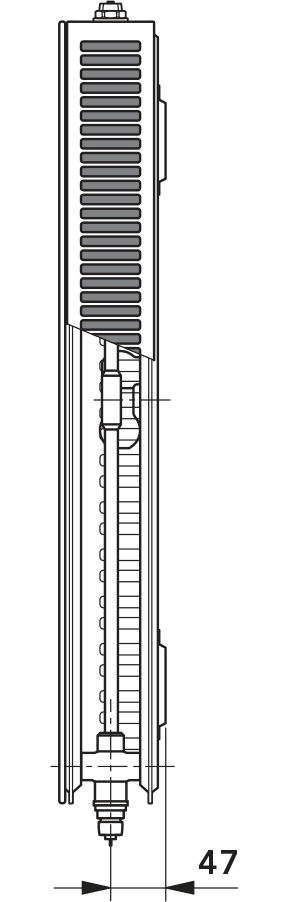

Overview of models

The T6 technology is based on the radiator’s axis of symmetry, thereby creating limitless flexibility. T6 centre-connection radiators are perfectly symmetrical. They are the ideal combination of design and unique technology. Thanks to the patented technology and the special geometry of the convection plates, the T6 provides extremely high heating power. Consequently, it is able to heat up rooms particularly rapidly and guarantees the optimum level of thermal comfort.

Quality as a sign of maximum safey

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type K1SPG

Type K1SPG

Type K1SPG

Height Height 300  400  500  600
Width Length up to 2000
Depth Depth 63

Connections  Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure  Test positive pressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C

Type P+

Type P+

Type P+

double-layer with one convection sheet
Height Height 600
Width Length  up to 2000
Depth Depth 82

Connections  Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure  Test positive pressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C

Type K2

Type K2

Type K2

double-layer with two convection sheets
Height Height 300 400 500 600
Width Length up to 2000
Depth Depth 107

Connections  Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure  Test positive pressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C

Technical information

The T6-PLAN CENTRALLY CONNECTED RADIATOR is - with its welded in set of T-shaped valves - suitable for double-pipe installations as well as single-pipeinstallations, using a single-pipe manifold. Additionally to the central connection from the bottom, the sophisticated design makes possible other connections used at compact radiators, such as the single-sided and two-sided connection.

Radiators are delivered ready for double-pipe installation and with a factory-adjusted kv-setting, appropriate to the radiator output.

For district heating installations with a big difference between water supply and return temperature, a valve unit that allows a precise and stepless adjustment is available on request.

Connection details - double-pipe system

T6 PLAN connection modes



Flow  Flow

Return  Return

Blank plug  Blank plug

Vent plug  Vent plug

Drain plug  Drain plug



Caution:
When using the T6-VONOPLAN CENTRALLY CONNECTED RADIATOR as a compact radiator, the 3/4" plastic screwing caps must be replaced by 3/4" chrome caps (accessory code: BPC). The plastic part of the special vent plug also has to be removed. Further information on double and single pipe operation is provided on pages 16-17 of the full technical guide.

Double-pipe operation - Adjustment tips for built-in valve

T6 double-pipe adjustment tips Setting instructions:
VOGEL&NOOT valve radiators are factory-fitted for double-pipe installations. Each individual radiator is fitted with a pre-adjusted valve insert, appropriate to the radiator output. The preset kv-value is also marked in colour on the front surface.

Please note:
Should customised adjustments be required, the pre-set kv-values can be altered as needed. Swapping the right-hand side built-in valve to the left-hand side is no problem at all at any time. Radiator are delivered with protective caps. After removing the protective cap (pos. A) the following thermostat heads can be fitted directly to the builtin valve (pos. B): "RA 2000", "RAW" by Danfoss, "VK" by Heimeier, "D" by Herz, "thera DA" by MNG and "UNI XD" by Oventrop.

Single-pipe operation - Factory-adjusted built-in valve

T6 single-pipe built-in valve In single-pipe operation, setting the built-in valve on N.

The radiator will be delivered with a protective cap. After removing the protective cap (item A) the following thermostat heads can be installed directly onto the built-in valve (item B): "RA 2000" and "RAW" by Danfoss, "VK" by Heimeier, "theraDA" by MNG, as well as "UNI XD" by Oventrop.

Caution: During the installation take care that the return element (2)  has been installed at the water return, and the supply element (1) at the water supply.

Changing the built-in valve from the right- to the left-hand side can easily be done at any time.

Colours

Our T6 VONOPLAN radiators are available in 72 different colours.
Please note: These colour options are to order only - approximately 6-8 week delivery time.

21 Sanitary colours

color name color code
picture missing



The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.Additional colours are available on request!

42 Standard colours

9 Metallic colours

color name color code
T6 profile radiator



The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.Additional colours are available on request!
