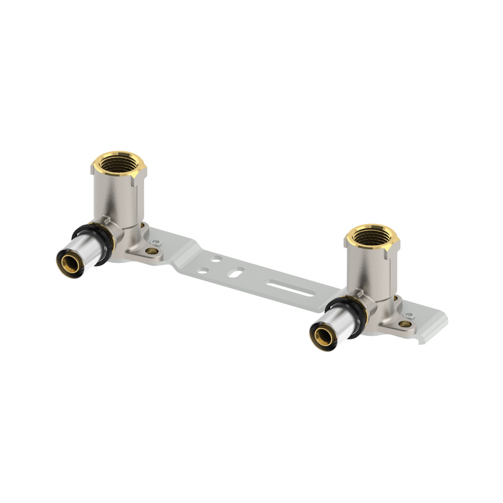

EASYTEC Wandwinkel mit Metallhalter
Als Unterputz- und Aufputz-Version erhältlich
- Langlebige Konstruktion
- Zeitsparende Installation
- „Unverpresst undicht“-Funktion
- Kontrollsichtfenster
- Zertifizierte Qualität
Produktbeschreibung
EASYTEC Wandwinkel mit Metallhalter bieten eine professionelle und zeitsparende Lösung für stabile Anschlüsse und sichere Befestigungen in Trinkwasser- und Heizungsinstallationen. Die Kombination aus einem vernickelten Messing-Wandwinkel und einem verzinkten Metallhalter garantiert Langlebigkeit und Zuverlässigkeit. Erhältlich als Unterputz- und Aufputz-Version, verfügen alle EASYTEC Wandwinkel über die bewährten EASYTEC-Sicherheitsmerkmale: EPDM-O-Ringe für dauerhafte Dichtheit, integrierte Sichtfenster zur Kontrolle der Einstecktiefe und die patentierte „unverpresst undicht“-Funktion zur Vermeidung von Montagefehlern.
Technische Spezifikationen
| ETIM Class | EC003024 - Fitting mit 2 Anschlüssen |
|---|---|
| Länge [mm] | 213 - 382 |
| Gewicht [kg] | 1.52 - 4.4 |
Artikel
| Artikelnummer | Artikelbeschreibung | Länge [mm] | Gewicht [kg] | CO2/Kg-Äquivalent pro kg Material |
|---|---|---|---|---|
| FED4W12F16ADFMA0 | VN-EasyTec Doppelwandw. UP-Set 16x1/2" | 382 | 4.2 | - |
| FED4W12F16ADWMA0 | VN-EasyTec Doppelwandw. AP-Set 16x1/2" | 213 | 3.44 | - |
| FED4W12F16ALFMA0 | VN-EasyTec RM Wandwinkel UP-Set L16x1/2" | 382 | 3.16 | - |
| FED4W12F16ASFMA0 | VN-EasyTec RM Wandwinkel UP-Set 16x1/2" | 382 | 2.28 | - |
| FED4W12F16ASWMA0 | VN-EasyTec RM Wandwinkel AP-Set 16x1/2" | 213 | 1.52 | - |
| FED4W12F20ADFMA0 | VN-EasyTec Doppelwandw. UP-Set 20x1/2" | 382 | 4.4 | - |
| FED4W12F20ADWMA0 | VN-EasyTec Doppelwandw. AP-Set 20x1/2" | 213 | 3.64 | - |
| FED4W12F20ALFMA0 | VN-EasyTec RM Wandwinkel UP-Set L20x1/2" | 382 | 3.2 | - |
| FED4W12F20ASFMA0 | VN-EasyTec RM Wandwinkel UP-Set 20x1/2" | 382 | 2.36 | - |
| FED4W12F20ASWMA0 | VN-EasyTec RM Wandwinkel AP-Set 20x1/2" | 213 | 1.6 | - |
