Produktbeschreibung

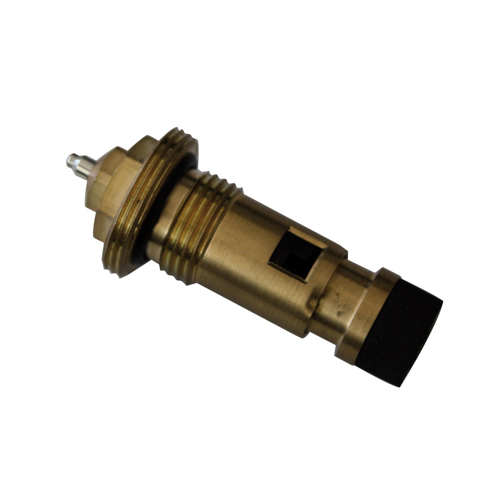

Ventileinsatz Laserline komplett
Technische Spezifikationen
| ETIM Class | EC010002 - Ventileinsatz |
|---|---|
| Werkstoff | Messing |
| Bedienung | thermostatisch |
| Größe Heizkörperanschluss | 1/2 Zoll |
| Einstecklänge [mm] | 49 |
| Thermostatanschluss | Außengewinde |
| Abmessung Thermostatanschluss | M30 x 1,5 |
| Stufenlos | Ja |
| Anzahl der Voreinstellwerte-/stufen | 6 |
| Kvs-Wert [m³/h] | 1.5 |
| Max. Arbeitsdruck [bar] | 13 |
Artikel
| Artikelnummer | Artikelbeschreibung | Gewicht [kg] | CO2/Kg-Äquivalent pro kg Material |
|---|---|---|---|
| AZ13DZ8828321000 | VN-Ventileinsatz Laserline Ventil | - | - |
