Vertical radiator
The optimal solution when space is limited.
Shapely design, high heating power and
a wide range of colour options.
Overview of models
The radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified. Furthermore, the quality and performance data of VOGEL&NOOT panel radiators are constantly reviewed and confirmed by accredited European institutions.
Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.
-
Type 10
Height 1800 2000 2200 2400 2600 Length 500 and 600 Hub spacing 446 and 546 Depth 46 Gradation: All overall heights from 1800 mm in 200 m gradations
Connections: 4 x G 1/2 I.G.
Test positive pressure: 13 bar
Max. positive operating pressure: 10 bar
Max. operating temperature: 110 °C -
Type 20 K
Height 1800 2000 2200 2400 2600 Length 500 and 600 Hub spacing 446 and 546 Depth 80
Gradation: All overall heights from 1800 mm in 200 m gradations Connections: 4 x G 1/2 I.G. Test positive pressure: 13 bar Max. positive operating pressure: 10 bar Max. operating temperature: 110 °C
Technical information
Each VERTICAL RADIATOR is equipped with suspension brackets welded onto the rear side. The 20 K radiator model is also supplied with two side grills.
-

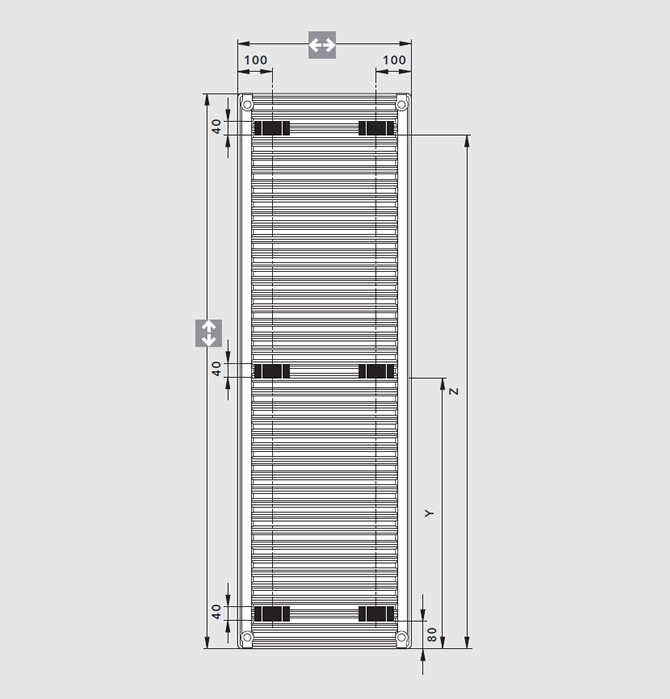

Location of suspended straps
Dimension Y = Height/2 - 20 mm
Dimension Z = Height - 120 mm
Downloads
Here you can download all relevant data in different file formats.
- Technical information vertical radiators [pdf; 0.19 MB]
- Brochure vertical radiators [pdf; 0.26 MB]
- Technical information panel radiators [pdf; 2.36 MB]
- Brochure panel radiators [pdf; 0.95 MB]
- Text for invitation of tenders [pdf; 0.03 MB]
- Mounting instructions (german) [pdf; 0.35 MB]
- Colour palette [pdf; 0.04 MB]
Colours
Our VERTICAL RADIATORS are available in 45 different colours.
“We have created various replacement scenarios in which a radiator replacement is carried out. With VOGEL&NOOT panel radiators, an average saving of approximately 15 % was recorded.”
DI Dr. Michael Graf is professor on the renowned technical college in Pinkafeld, Austria.
Spotlights
-
Added value with modern low-temperature radiators [Many benefits with panel radiators]
-
Compatible with all energy sources:
• Range of supply temperatures from between 90 ° and less than 40 °C
• Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)
Enormous potential for cost reduction with new buildings & renovations:
• Approx. 15 % less energy costs with replacement radiators
(as comp. with old element radiators)
• Thanks to high performance, only low system temperatures are required
Extremely fast control in the heating-up and cooling time
• Fast reaction time after sudden temperature changes (less energy)
• High efficiency due to short cooling & heating-up times
• Control is of very good quality
-
-
Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]
-
Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
-
-
Factory-adjusted kv-setting [Saving of energy costs and CO2 reduction]
-
Panel radiators are delivered ready for double-pipe installation and with a factory-adjusted kv-setting, appropriate to the radiator output. Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.
-
