Colours and decors
Create your individual design radiator with more than 1.000 options. Choose from a wide range of different colours, decors, trenddecors and nature surfaces.
-
standard
Form follows function - the wide towel racks underline the claim to functional independence. Classic white for a timeless design.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
elegance
42 RAL-colours, 21 Sanitary colours and 9 metallic colours.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
decor
All the patterns in the range „dec 001“ to „dec 020“ are available on request in the colours indicated in the colour chart. The radiator colour corresponds to the colour of the pattern; the front panel is always white.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
trenddecor
The four different trenddecors are available in nine colour-combinations.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
Zoom
Zoom
Zoom
Zoom
Overview of models
These high quality design radiators are made in Austria. The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.
-
Different dimensions and varying models
Length600 600 700
Height1471 1685 1685
Depth90
Technical information
Get an overview of the most important technical data. For further information, please download the featured pdf files.
-

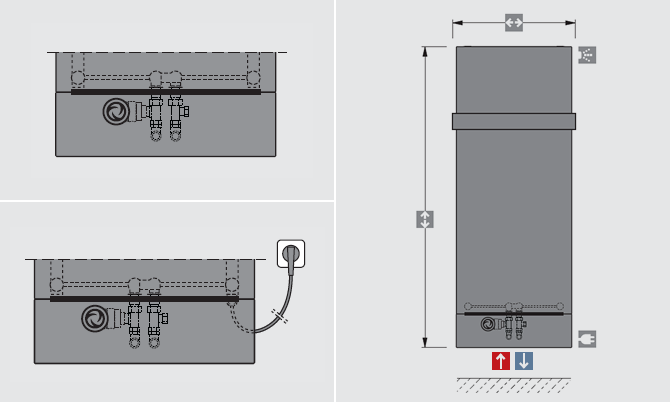

Connection examples
Connections: 2 x external thread G ¾” (valve connection set)
Maximum permissible operating pressure: 5 bar
Maximum operating temperature: 110 °C
Flow
Return
Vent plug
Electric connection
Accessory: electric heat element G 3/8
SEWA Design radiators equipped with an electric heating element can also be used at times when the regular heating system is switched off.It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements.
Basic standard accessories (included):
• 2 towel rails (overall height 1500 mm), or 3 towel rails (overall height 1700 mm)
• an integrated valve connection set incl. thermostat head
• a pivotable vent plug, G ¼, and
• a dummy plug, G 3/8, nickel-plated brass, self-sealing, factory-sealed
• a wall mounting set with spacers
• 2 mounting brackets, alternatively: 2 extensions
• instruction sheet -

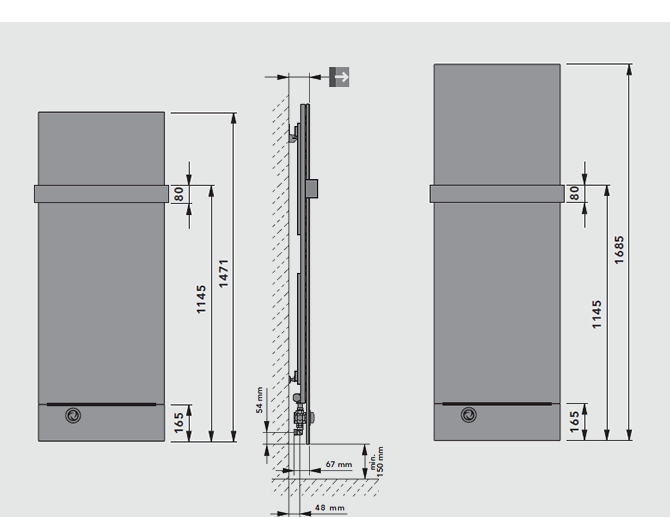

Dimensions [mm]
Downloads
Here you can download all relevant data in different file formats.
- Technical information SEWA [pdf; 0.07 MB]
- Brochure SEWA [pdf; 0.08 MB]
- Technical information New Design Collection [pdf; 0.31 MB]
- Brochure New Design Collection [pdf; 0.52 MB]
- Text for invitation of tenders [pdf; 0.03 MB]
- Mounting instructions [pdf; 3.39 MB]
- Accessories [pdf; 0.08 MB]
- Colour palette and surfaces [pdf; 1.10 MB]
Accessories
Basic standard accessories (included):
• 2 towel rails (overall height 1500 mm), or 3 towel rails (overall height 1700 mm)
• an integrated valve connection set incl. thermostat head
• a pivotable vent plug, G ¼, and
• a dummy plug, G 3/8, nickel-plated brass, self-sealing, factory-sealed
• a wall mounting set with spacers
• 2 mounting brackets, alternatively: 2 extensions
• instruction sheet
Get an overview of our wide range of accessories for our design radiators.
"These individual design radiators become a creative centre of modern living. Individuality is king!"
Manfred Lechner, Designer
Design Spotlights
-
Interactive designer [Create your individual design radiator with more than 1.000 options]
-
With the extensive selection of surfaces, decors, patterns and colours, the “New Design Collection” from VOGEL&NOOT is the perfect way of designing your living space to create an attractive environment. Using the design configurator, anyone can design their radiator model in line with their individual requirements and tailor it so it is coordinated with their living environment. As a result, all design radiators tell a unique personal story.
- Start the interactive designer
-
-
Self-fulfilment with individual design [Harry Gatterer, Matthias Horx Institute for future development ]
-
Living space is something personal, it is just about the most personal thing that we have: our own four walls. And when we can position objects that are important to us within this space, objects that are imbued with emotions, that is something we enjoy. And of course, that is perfectly in line with the concept of individualisation, which is currently an overwhelming important trend.
-
