Colours and decors
Create your individual design radiator with more than 1.000 options. Choose from a wide range of different colours, decors, trenddecors and nature surfaces.
-
standard
Form follows function - the open side leads to a particularly extravagant design solution. Classic white for a timeless design.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
elegance
42 RAL-colours, 21 Sanitary colours and 9 metallic colours.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
decor
All the patterns in the range „dec 001“ to „dec 020“ are available on request in the colours indicated in the colour chart. The radiator colour corresponds to the colour of the pattern; the front panel is always white.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
nature
The use of “natural“ surface structures makes rooms look harmonious and creates a comfortable ambience with a touch of luxury.The radiator fronts come in many popular wood and marble looks.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
Zoom
Zoom
Zoom
Zoom

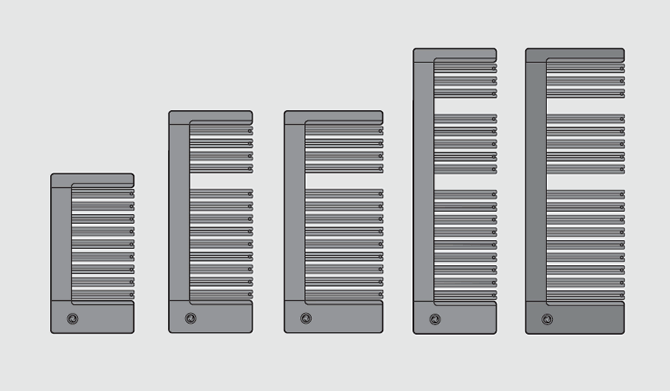

Overview of models
These high quality design radiators are made in Austria. The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.
 Length |
530 | 530 | 630 | 530 | 630 |
|---|---|---|---|---|---|
 Height |
1003 | 1403 | 1403 | 1803 | 1803 |
 Depth |
100-112 | ||||
Technical information
Get an overview of the most important technical data. For further information, please download the featured pdf files.
-

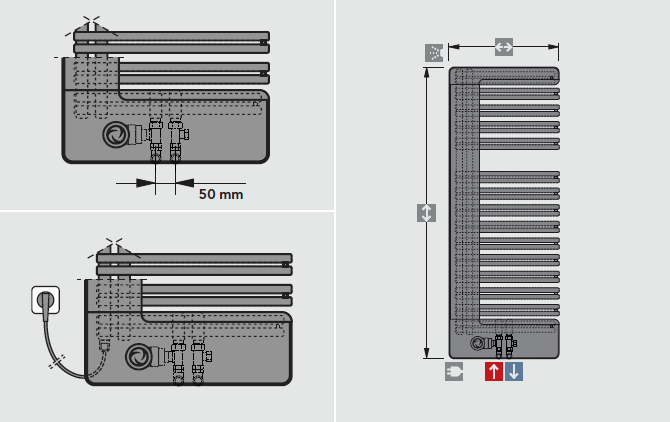

Connection modes
Connections: 2 x internal thread G ½ 1 x internal thread G ¼ (for vent plug)
2 x external thread G ¾ (mounting brackets or extensions)
Maximum permissible operating pressure: 13 bar
Maximum positive operating pressure: 10 bar
Maximum operating temperature: 110 °C
Flow
Return
Vent plug
Electric connection
Accessory: PTC electric heat element
NERO Design radiators fitted with an electric heating element can also be used at times when the regular heating system is switched off.
It is absolutely necessary to take account of the allocation of the electric heating element powerratings.Basic standard accessories (included):
• an integrated valve connection set incl. thermostat head
• a pivotable vent plug, G ¼, nickel-plated, self-sealing, factory-sealed
• a wall mounting set matching the radiator colour
• 2 mounting brackets, alternatively: 2 extensions
• fitting aid
• instruction sheet -

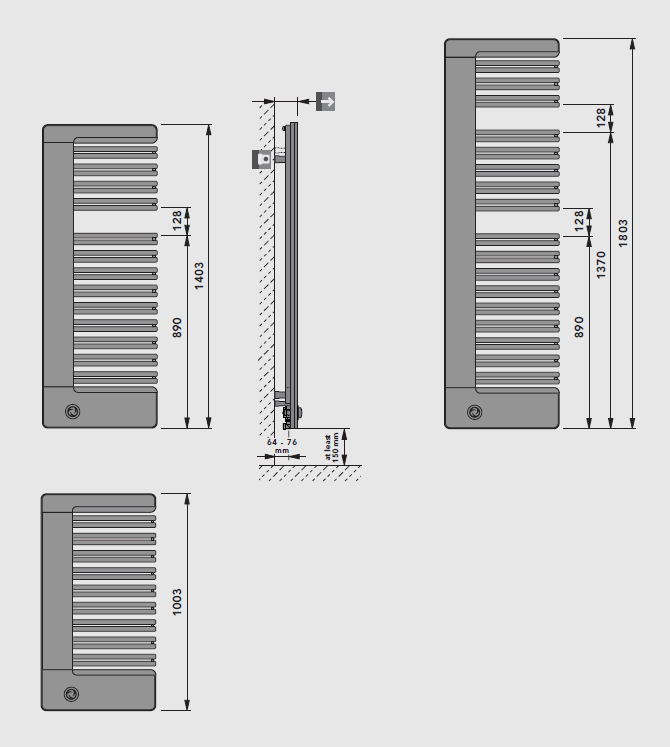

Dimensions [mm]
Downloads
Here you can download all relevant data in different file formats.
- Technical information NERO [pdf; 0.08 MB]
- Brochure NERO [pdf; 0.11 MB]
- Technical information New Design Collection [pdf; 0.31 MB]
- Brochure New Design Collection [pdf; 0.52 MB]
- Text for invitation of tenders [pdf; 0.03 MB]
- Mounting instructions [pdf; 3.17 MB]
- Accessories [pdf; 0.08 MB]
- Colour palette and surfaces [pdf; 1.10 MB]
Accessories
Basic standard accessories (included):
• an integrated valve connection set incl. thermostat head
• a pivotable vent plug, G ¼, nickel-plated, self-sealing, factory-sealed
• a wall mounting set matching the radiator colour
• 2 mounting brackets, alternatively: 2 extensions
• fitting aid
• instruction sheet
Get an overview of our wide range of accessories for our design radiators.
