Compact radiator

High performance, rapid room
heating and even heat distribution.

Technical information Brochure Output calculator

Toggle

Overview of models Technical information Downloads Colours Accessories

Overview of models

The radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified. Furthermore, the quality and performance data of VOGEL&NOOT panel radiators are constantly reviewed and confirmed by accredited European institutions.

Quality as a sign of maximum safety

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type 10

single-layer
Height	300	400	500	600	900
Length	up to 1200		up to 2400	up to 2600	up to 1400
Depth	46

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Type 11 K

single-layer with one convection sheet
Height	300	400	500	600	900
Length	up to 2400		up to 2600		up to 2000
Depth	61

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Type 21 K-S

Compact radiator TYPE 21 K-S

double-layer with one convection sheet
Height	300	400	500	600	900
Length	up to 2400		up to 3000		up to 2000
Depth	80

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Type 22 K

double-layer with two convection sheets
Height	300	400	500	600	900
Length	up to 3000				up to 2000
Depth	105

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

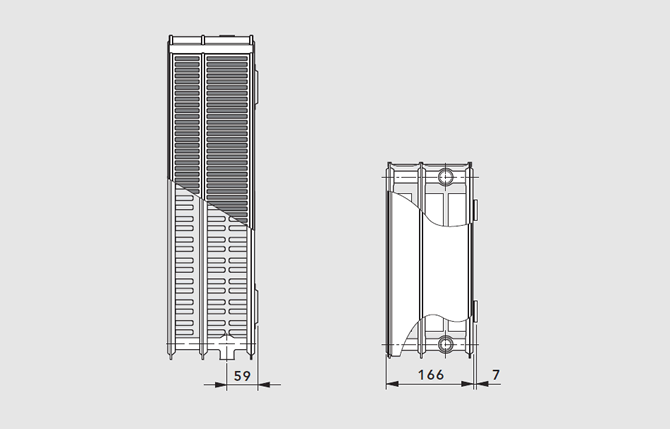

Type 33 K

Compact radiator TYPE 33 K

three-layers with three convection sheets
Height	300	400	500	600	900
Length	up to 3000	up to 2200			up to 2000
Depth	166

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Technical information

Compact radiators can easily be converted for a single-pipe connection, provided that four-way valves with a by-pass pipe are used.

Connection mode - single-pipe system

Flow

Return

Blank plug

Vent plug

Drain plug
Connection modes - double-pipe system

A) Single-sided connection
B) Connection both sides
C) Connection on top (Warning: Lower performance)

Flow

Return

Blank plug

Vent plug

Drain plug

Downloads

Here you can download all relevant data in different file formats.

DXF and DWG 2D-vector graphics [zip; 27.69 MB]

Colours

Our compact radiators are available in 45 different colours.

8 Sanitary colours
color name color code
8 RAL-Trendy colours
color name color code
25 RAL-Classic colours
color name color code
4 Metallic colours
color name color code

Accessories

Get an overview of our wide range of accessories for our panel radiators.

Accessories [pdf; 0.22 MB]

“We have created various replacement scenarios in which a radiator replacement is carried out. With VOGEL&NOOT panel radiators, an average saving of approximately 15 % was recorded.”

DI Dr. Michael Graf is professor on the renowned technical college in Pinkafeld, Austria.

Expert Opinion Reseller search

Spotlights

Added value with modern low-temperature radiators [Many benefits with panel radiators]
- Compatible with all energy sources:
  • Range of supply temperatures from between 90 ° and less than 40 °C
  • Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)

  Enormous potential for cost reduction with new buildings & renovations:
  • Approx. 15 % less energy costs with replacement radiators
  (as comp. with old element radiators)
  • Thanks to high performance, only low system temperatures are required

  Extremely fast control in the heating-up and cooling time
  • Fast reaction time after sudden temperature changes (less energy)
  • High efficiency due to short cooling & heating-up times
  • Control is of very good quality
Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]
- Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
Factory-adjusted kv-setting [Saving of energy costs and CO2 reduction]
- Panel radiators are delivered ready for double-pipe installation and with a factory-adjusted kv-setting, appropriate to the radiator output. Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.
