Vertical radiator - centrally connected
The optimal solution when space is limited.
Shapely design, high heating power and
a wide range of colour options.
Overview of models
The radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified. Furthermore, the quality and performance data of VOGEL&NOOT panel radiators are constantly reviewed and confirmed by accredited European institutions.
Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requirements.
-

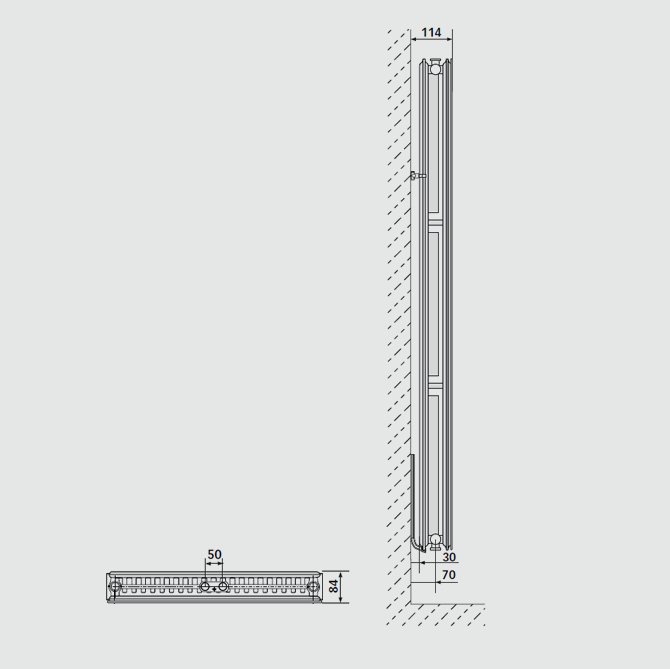

Type 21
Height 1800 1950 2100 Length 300, 450, 600, 750 Depth 84
Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left and right side
Test positive pressure: 8 bar
Max. positive operating pressure: 6 bar
Max. operating temperature: 110 °C -

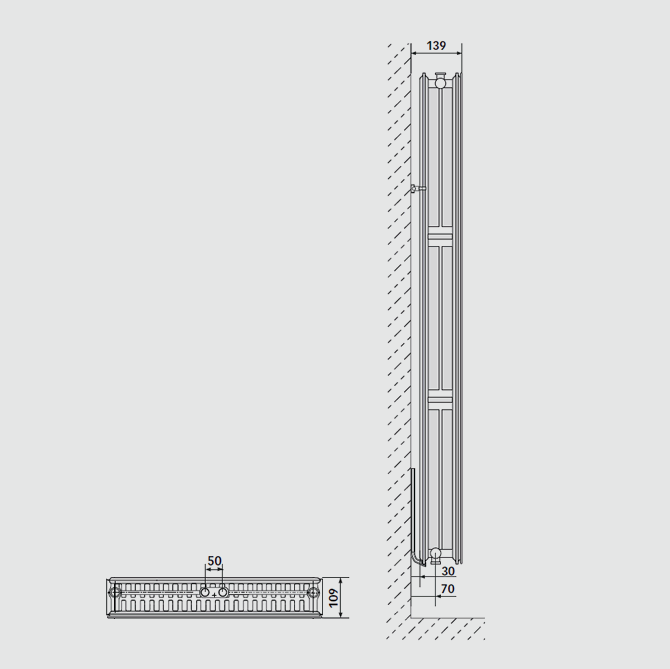

Type 22
Height 1800 1950 2100 Length 300, 450, 600, 750 Depth 81 Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left and right side Test positive pressure: 8 bar Max. positive operating pressure: 6 bar Max. operating temperature: 110 °C
Technical information
To offer the most flexible installation, the VERTICAL PLAN RADIATOR has 6 G1/2" connections.
-

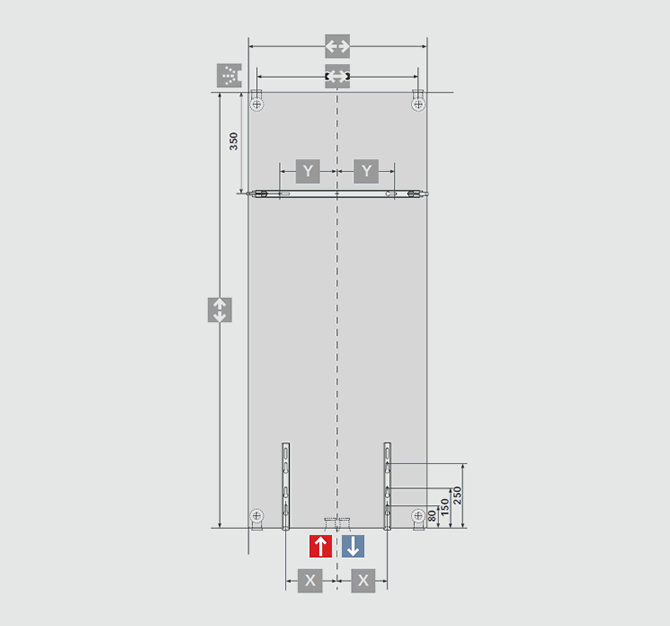

Connections and dimensions for mounting
Length 300 450 600 750
75 100 175 250
50 125 200 275
Downloads
Here you can download all relevant data in different file formats.
- Technical information plan vertical radiators centrally connected (german version) [pdf; 0.15 MB]
- Brochure vertical radiators centrally connected plan(german version) [pdf; 1.24 MB]
- Brochure panel radiators [pdf; 0.76 MB]
- Text for invitation of tenders (german) [pdf; 0.03 MB]
- Mounting instructions [pdf; 1.77 MB]
- Colour palette [pdf; 0.04 MB]
- Datanorm Austrian Version 30; Date 08/2010; Datanorm Version 4.0 [zip; 0.34 MB]
- BDH standard dataset Austrian Version 17; Date 01/2010; BDH Version 2.0 [zip; 0.02 MB]
Colours
Our VERTICAL PLAN RADIATORS are available in 20 different colours.
“We have created various replacement scenarios in which a radiator replacement is carried out. With VOGEL&NOOT panel radiators, an average saving of approximately 15 % was recorded.”
DI Dr. Michael Graf is professor on the renowned technical college in Pinkafeld, Austria.
Spotlights
-
Added value with modern low-temperature radiators [Many benefits with panel radiators]
-
Compatible with all energy sources:
• Range of supply temperatures from between 90 ° and less than 40 °C
• Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)
Enormous potential for cost reduction with new buildings & renovations:
• Approx. 15 % less energy costs with replacement radiators
(as comp. with old element radiators)
• Thanks to high performance, only low system temperatures are required
Extremely fast control in the heating-up and cooling time
• Fast reaction time after sudden temperature changes (less energy)
• High efficiency due to short cooling & heating-up times
• Control is of very good quality
-
-
Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]
-
Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
-
-
Factory-adjusted kv-setting [Saving of energy costs and CO2 reduction]
-
Panel radiators are delivered ready for double-pipe installation and with a factory-adjusted kv-setting, appropriate to the radiator output. Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.
-
