Multi-functional valve radiator

High power and enormous flexibility
regarding control.

Integrated valve technology with
a factory-adjusted kv-setting.

Technical information (german) Brochure (german) Output calculator

Toggle

Overview of models Technical information Downloads Colours

Overview of models

The radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified. Furthermore, the quality and performance data of VOGEL&NOOT panel radiators are constantly reviewed and confirmed by accredited european institutions.

Quality as a sign of maximum safety

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type 11

single-layer with one convection sheet
Height	300	400	500	600	900
Length	up to 1200	up to 1800	up to 2000		up to 1600
Depth	63

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2 and 2 x G3/4 external thread bottom right

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Type 21-S

double-layer with one convection sheet
Height	300	400	500	600	900
Length	-	up to 1800	up to 2000		up to 1400
Depth	82

Steps: any overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2" and 2 x G3/4" external thread bottom right

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Type 22

double layer with two convection sheets
Height	300	400	500	600	900
Length	up to 3000	up to 3000			up to 1600
Depth	107

Steps: any overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2" and 2 x G3/4" external thread bottom right

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Type 33

three-layers with three convection sheets
Height	300	400	500	600	900
Length	up to 2600	up to 2000	up to 2000	up to 2200	up to 1400
Depth	168

Steps: any overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2" and 2 x G3/4" external thread bottom right

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Technical information

The PLAN-MULTIFUNCTIONAL VALVE RADIATOR with its welded valve unit is suitable for double-pipe as well as for single-pipe installations, using a onepipe manifold. Additionally to the connection possibility at the bottom, the sophisticated design also offers connectionpossibilities, known from compact radiators, such as single-sided or two-sided connections.

The radiator is delivered ready for double-pipe installation, with a factory-adjusted kv-setting, appropriate to the radiator output.

For district heating installations with a big difference between water supply and return temperature, a steplessly adjustable valve element is available on request.

Connection modes - double-pipe system

A) Single-sided connection
B) Connection both sides
C) Connection on top (Warning: Lower performance)
D) Single-sided connection

Flow

Return

Blank plug

Vent plug

Drain plug
kv-value chart

Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.

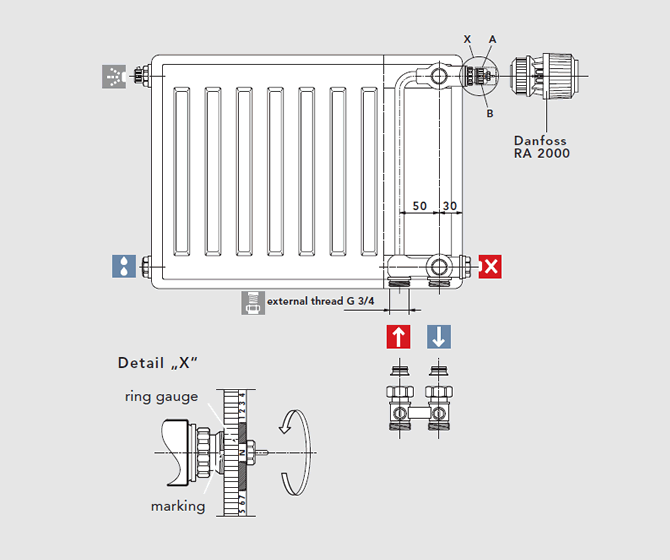

Adjustment tips for built-in valve

Setting instructions:
VOGEL&NOOT valve radiators arefactory-fitted for double-pipe installations. Each individual radiator is fitted with a pre-adjusted valve insert, appropriate to the radiator output. The preset kv-value is also marked in colour on the front surface.

Please note: Should customised adjustments be required, the pre-set kv-values can be altered as needed.

Radiators are delivered with protective caps. After removing the protective cap (pos. A) the following thermostat heads can be fitted directly to the builtin valve (pos. B): “RA 2000”, “RAW” by Danfoss, “VK” by Heimeier, “D” by Herz, “thera DA” by MNG and “UNI XD” by Oventrop.

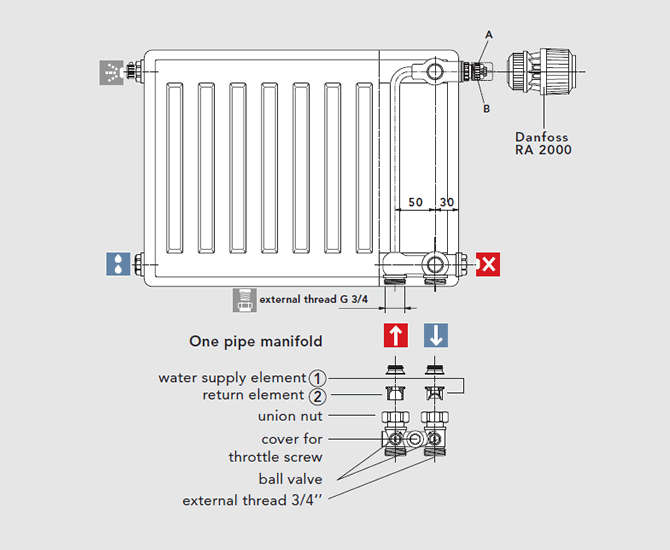

Single-pipe operation - factory-adjusted built-in valve

In single-pipe operation, setting the built-in valve on N.

The radiator will be delivered with a protective cap. After removing the protective cap (item A) the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“ and „RAW“ by Danfoss, „VK“ by Heimeier, „theraDA“ by MNG, as well as „UNI XD“ by Oventrop.

Caution: During the installation take care that the return element (2) has been installed at the water return, and the supply element (1) at the water supply. Changing the built-in valve from the right- to the left-hand side can easily be done at any time.
