T6-
Centrally Connected

High performance, rapid room
heating and even heat distribution.

Decisive advantages with the T6.

Brochure

Toggle

The T6-Technology Overview of models Technical information Downloads Colours

The T6: revolution in radiators

Thanks to innovative centre-connection technology and optimum energy efficiency, the T6 sets the standard for room heating, comfort and ease of use - advantages that will win over any customer!

Connection advantage

Diagonal or in-line connection via a standardised connection position.
Selection advantage

Even if the pipework is laid in advance, the choice of radiator can be changed at any time.
Positioning advantage

Flexible thermostat position as desired, thanks to patented pipe guides.
Installation advantage

Cost-effective, attractive and safe installation options without limitations.
Distance advantage

Flexible choice of models with a standardised distance between the connection and the wall.
Assembly advantage

The pipework can be laid in advance without the radiator to allow undisturbed progress of work.

Overview of models

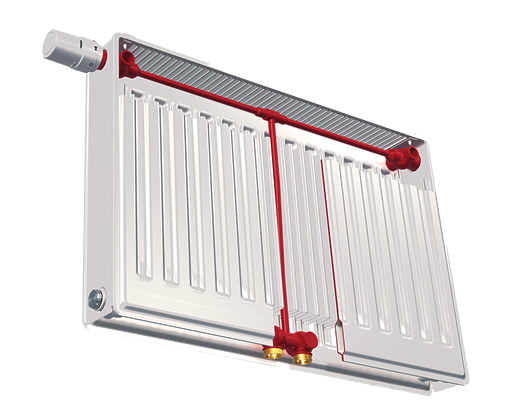

The T6 technology is based on the radiator’s axis of symmetry, thereby creating limitless flexibility. T6 centre-connection radiators are perfectly symmetrical. They are the ideal combination of design and unique technology. Thanks to the patented technology and the special geometry of the convection plates, the T6 provides extremely high heating power. Consequently, it is able to heat up rooms particularly rapidly and guarantees the optimum level of thermal comfort.

Quality as a sign of maximum safey

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requirements.

Type K1SPG

T6 TYPE 11 VM

single-layer with one convection sheet
Height	300	400	500	600
Length	up to 2000
Depth	61

Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Type P+

T6 TYPE 21 VM-S

double-layer with one convection sheet
Height	600
Length	up to 2000
Depth	80

Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

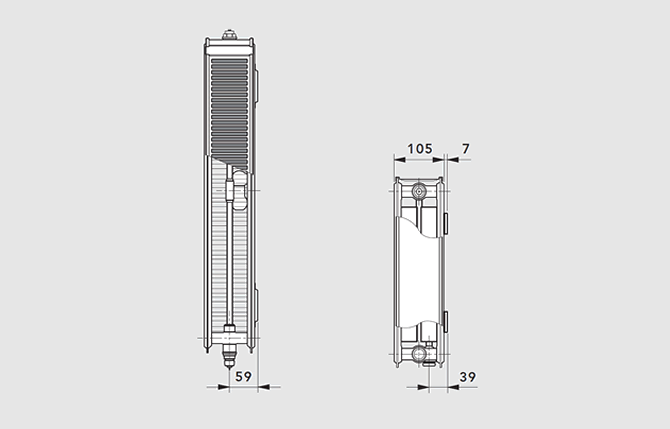

Type K2

double-layer with two convection sheets
Height	300	400	500	600
Length	up to 2000
Depth	105

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Technical information

The T6-CENTRALLY CONNECTED RADIATOR is - with its welded in set of T-shaped valves - suitable for double-pipe installations as well as single-pipeinstallations, using a single-pipe manifold. Additionally to the central connection from the bottom, the sophisticated design makes possible other connections used at compact radiators, such as the single-sided and two-sided connection.

Radiators are delivered ready for double-pipe installation and with a factory-adjusted k_v-setting, appropriate to the radiator output.

For district heating installations with a big difference between water supply and return temperature, a valve unit that allows a precise and stepless adjustment is available on request.

Connection details - double-pipe system

A) Single-sided connection
B) Connection both sides
C) Connection on top (Warning: Lower performance)

Flow

Return

Blank plug

Vent plug

Drain plug

Caution:
When using the T6-CENTRALLY CONNECTED RADIATOR as a compact radiator, the 3/4“ screwing caps made of plastic have to be replaced by nickel-plated brass caps (accessory). Available under the item number: AZ0PL000C0002000. Additionally the plastic part of the special vent plug has to be removed.

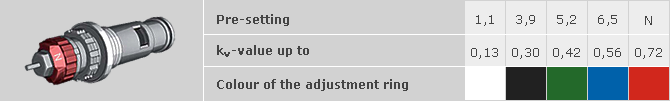

kv-value chart

Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.

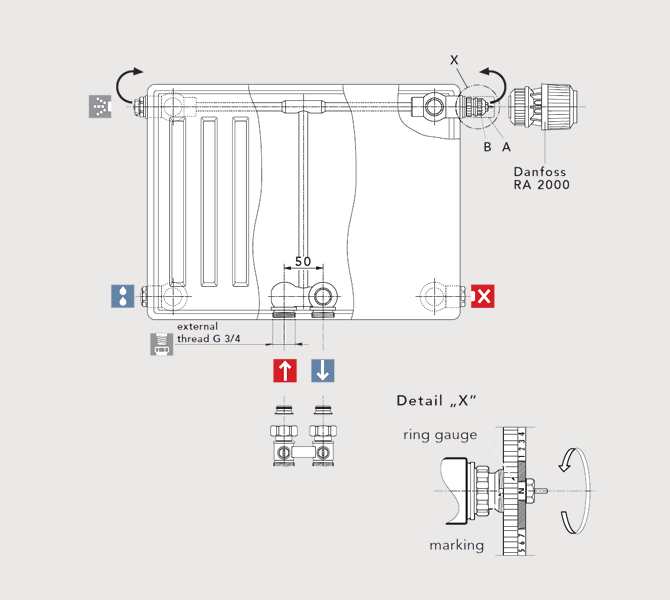

Double-pipe operation - Adjustment tips for built-in valve

Setting instructions:
VOGEL&NOOT valve radiators are factory-fitted for double-pipe installations. Each individual radiator is fitted with a pre-adjusted valve insert, appropriate to the radiator output. The preset k_v-value is also marked in colour on the front surface.

Please note:
Should customised adjustments be required, the pre-set k_v-values can be altered as needed. Swapping the right-hand side built-in valve to the left-hand side is no problem at all at any time. Radiator are delivered with protective caps. After removing the protective cap (pos. A) the following thermostat heads can be fitted directly to the builtin valve (pos. B): “RA 2000”, “RAW” by Danfoss, “VK” by Heimeier, “D” by Herz, “thera DA” by MNG and “UNI XD” by Oventrop.

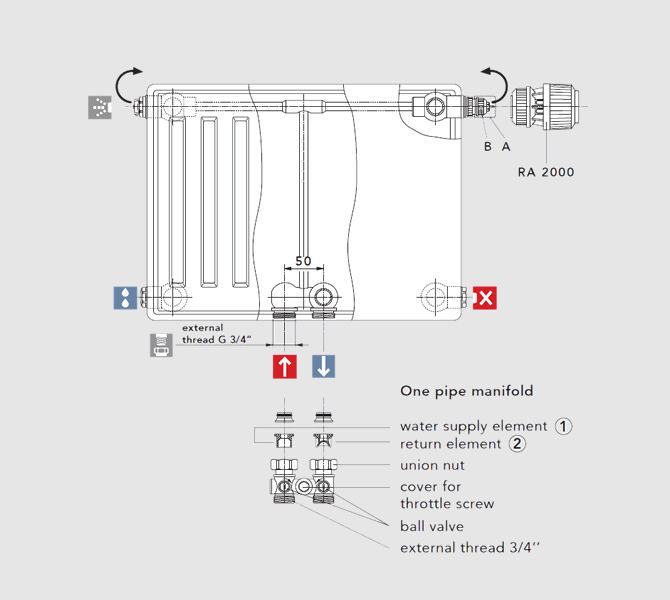

Single-pipe operation - Factory-adjusted built-in valve

In single-pipe operation, setting the built-in valve on N.

The radiator will be delivered with a protective cap. After removing the protective cap (item A) the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“ and „RAW“ by Danfoss, „VK“ by Heimeier, „theraDA“ by MNG, as well as „UNI XD“ by Oventrop.

Caution: During the installation take care that the return element (2) has been installed at the water return, and the supply element (1) at the water supply.

Changing the built-in valve from the right- to the left-hand side can easily be done at any time.

Downloads

Here you can download all relevant data in different file formats.

Images in different resolutions for specific use in printings (300 dpi) or on screens (72 dpi).

Colours

Our T6 radiators are available in 72 different colours.
Please note: These colour options are to order only - approximately 6-8 week delivery time.

21 Sanitary colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
42 Standard colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.Additional colours are available on request!
9 Metallic colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.Additional colours are available on request!
