Overview of models
The convectors and heating walls manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.
Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.
-
Type KH
Model Type 10 Type 20
Height358 430 502 358 430 502 574 646 790 574 646 790
Length500 – 2400 mm (for special overall lengths see output charts) Increments 100 mm (for an overall length of 1400 mm and greater: 200 mm)
Connections: 2 x internal thread G 1/2“, welded-in for supply and return. Vent and drain plugs
(or dummy plug) are factory sealed and are fitted according to the customer’s specifications.
Test overpressure (standard design): 5 bar
Max. positive operating pressure (high-pressure design): 8 bar
Max. operating temperature: 110 °C
Technical information
Get an overview of the most important technical data.
-

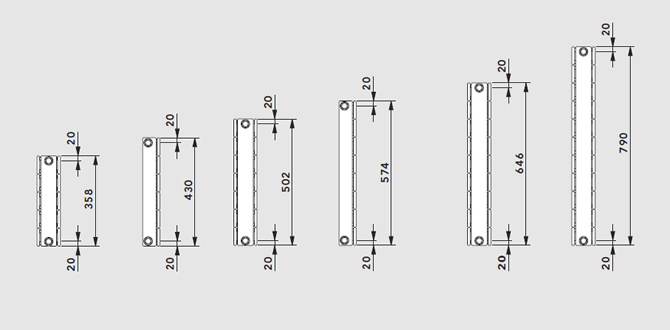

KH connection dimensions [mm]
Height358 430 502 574 646 790
Boss spacing318 390 462 534 606 750
Downloads
Here you can download all relevant data in different file formats.
Colours
The KONTEC horizontal design convector is available in 72 different colours.
Please note: These colour options are to order only - approximately 6-8 week delivery time.
-
21 Sanitary Colours
color name color code
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
42 Standard colours
- Beige
- Golden
- Pearly White
- Ivory Light
- Traffic Yellow
- Pastel Yellow
- Blazing Red
- Ruby
- Claret
- Reddish Black
- Beige Red
- Raspberry
- Mauve
- Ultramarine
- Sapphire
- Signal Blue
- Steel Blue
- Dove Blue
- Bistance Blue
- Pastel Blue
- Moss Green
- White Green
- Mint
- Silver Grey
- Slate Grey
- Anthracite
- Graphite Grey
- Stone Grey
- Light Grey
- Dust Grey
- Window Grey
- Tele Grey
- Chocolate
- Cream White
- Grey White
- White
- Traffic White
- Deep Black
- Traffic Black
- Cocoa
- Terracotta
- Cappuccino
color name color code
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
9 Metallic colours
color name color code
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
Accessories
Get an overview of our wide range of accessories for our convectors and heating panels.
In Europe, more than 40% of the CO2 emissions are caused by buildings. To update the whole heating system is one of the most important measures, to protect our environment sustainable.
cf. Prof. Rainer Hirschberg , VDI Nachrichten, Aachen 2006
Spotlights
-
Added value with modern low-temperature radiators [Many benefits with panel radiators]
-
Compatible with all energy sources:
• Range of supply temperatures from between 90 ° and less than 40 °C
• Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)
Enormous potential for cost reduction with new buildings & renovations:
• Approx. 15 % less energy costs with replacement radiators
(as comp. with old element radiators)
• Thanks to high performance, only low system temperatures are required
Extremely fast control in the heating-up and cooling time
• Fast reaction time after sudden temperature changes (less energy)
• High efficiency due to short cooling & heating-up times
• Control is of very good quality
-
-
Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]
-
Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
-
