VONARIS vertical design

Design and performance as a complete package for elevated requirements.

Also available as a pivoting valve connected radiator through patented fitting clips.

Technical information Brochure Output calculator

Toggle

Overview of models Technical information Downloads Colours Accessories

Overview of models

The convectors and heating walls manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

quality marks

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type VSV

VSV overview of models


Model	VSV 10			VSV 11			VSV 20			VSV 21
Height	1600	1800	2000	1600	1800	2000	1600	1800	2000	1600	1800	2000
Length	214 - 862 mm
Depth	68			68			93			93
Increments	72 mm

Connections: 4 x internal thread G 1/2“, and 2 x external thread G 3/4“, bottom right
(by special order, bottom left).

Test overpressure (standard design): 5 bar

Max. positive operating pressure (high-pressure design): 8 bar

Max. operating temperature: 110 °C

Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

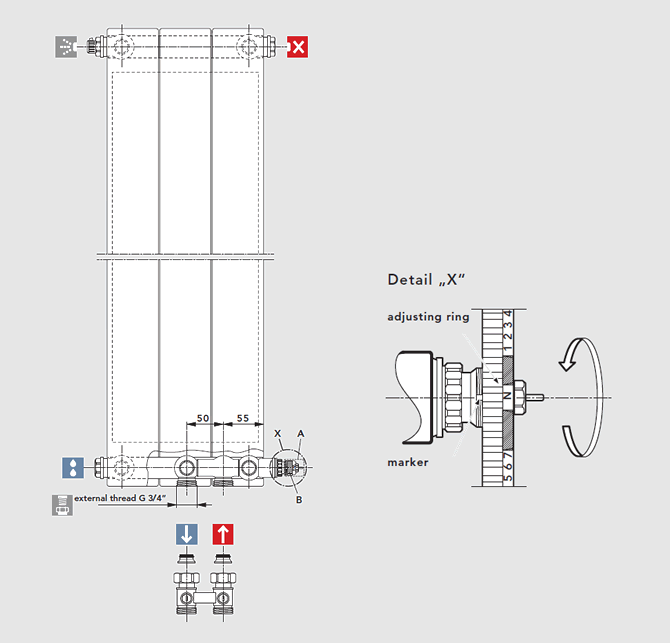

Double-pipe operation

It is easy to set the precise values required without using any special tools (see drawings).

The radiator will be delivered with a fi tted protective cap. After removing the protective cap (item A), the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“, or „RAW“ from Danfoss, „VK“ from Heimeier, „D“ from Herz, „thera DA“ from MNG, and „UNI XD“ from Oventrop.

Adjustment tips:
• Remove protective cap and sensor
• Lift the adjusting ring and turn it anti-clockwise, to the setting required – the set
value (1, 2, ...7, N) needs to be directly in line with the marker.
• Presetting is possible in steps of 0.5 between 1 and 7. The „N“setting, cancels all presetting.

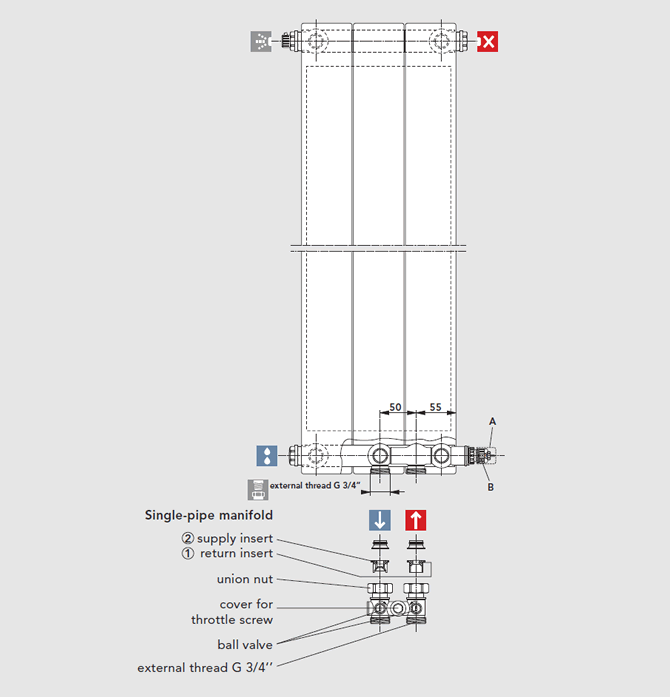

Single-pipe operation

A valve default setting is not necessary as the valve will be delivered factory-adjusted (default setting N).

The radiator will be delivered with a fitted protective cap. After removing the protective cap (item A), the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“, or „RAW“ from Danfoss, „VK“ from Heimeier, „D“ from Herz, „thera DA“ from MNG, and „UNI XD“ from Oventrop.

Please note: Prior to the installation of the one-pipe manifold it is essential to swap over the supply insert and the return insert so that the supply insert ( 1 ) is installed in the water supply, and the return insert ( 2 ) in the water return.
