VONARIS-M vertical

Simple and flexible preassembly
through the revolutionary central
connection technology.

A real plus to planning freedom as well
as a hint of modernity and style.

Technical information Brochure Output calculator

Toggle

Overview of models Technical information Downloads Colours Accessories

Overview of models

The convectors and heating walls manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

quality marks

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type VSV-M

VSV-M overview of models


Model	VSV-M 10			VSV-M 11			VSV-M 20			VSV-M 21
Height	1600	1800	2000	1600	1800	2000	1600	1800	2000	1600	1800	2000
Length	214 - 862 mm
Depth	68			68			93			93
Increments	72 mm

Connections: 2 x external thread G 3/4“, bottom centre

Test overpressure (standard design): 5 bar

Max. positive operating pressure (high-pressure design): 8 bar

Max. operating temperature: 110 °C

Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

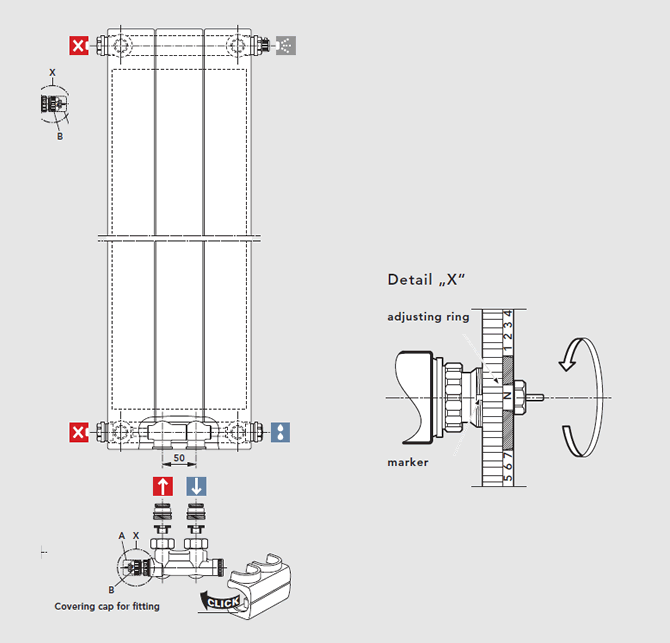

Connection modes - double-pipe operation

It is easy to set the precise values required without using any special tools (see drawings).

The radiator will be delivered with a fitted protective cap. After removing the protective cap (item A), the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“, or „RAW“ from Danfoss, „VK“ from Heimeier, „D“ from Herz, „thera DA“ from MNG, and „UNI XD“ from Oventrop.

Adjustment tips:
• Remove protective cap and sensor
• Lift the adjusting ring and turn it anti-clockwise, to the setting
required – the set value (1, 2, ...7, N) needs to be directly in line with the marker.
• Presetting is possible in steps of 0.5 between 1 and 7. The „N“setting, cancels all presetting.

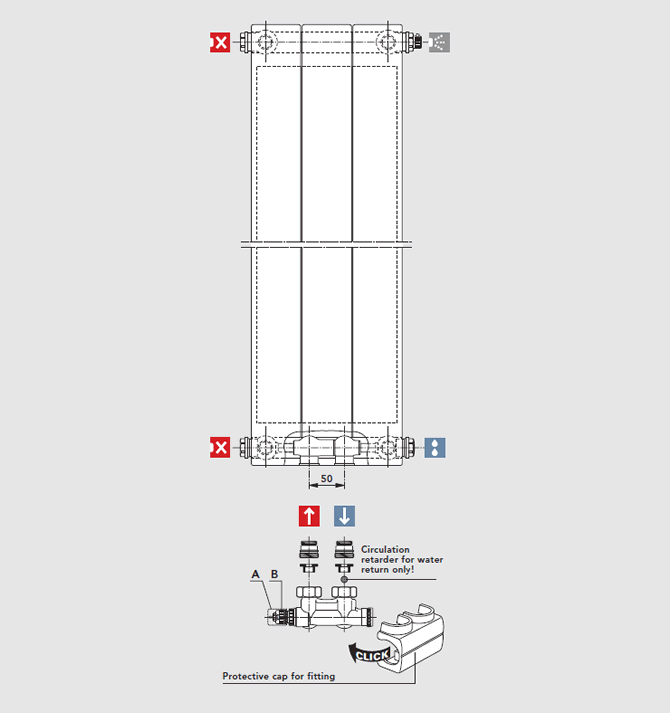

Connection modes - single-pipe operation

For VHV-M models no valve default setting is necessary, as the valve is delivered factory-adjusted (default setting "N").

The radiator valve (VHV-M models) and the connection set (VSV-M models) will both be delivered with a fitted protective cap. After removing the protective cap (item A), the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“, or „RAW“ from Danfoss, „VK“ from Heimeier, „D“ from Herz, „thera DA“ from MNG, and „UNI XD“ from Oventrop.

Please note:
When fitting the single-pipe operation connection set, ensure that the circulation retarder is installed in the water return.

Downloads

Here you can download all relevant data in different file formats.

DXF and DWG 2D-vector graphics [zip; 1.15 MB]

Colours

The VONARIS-M vertical design heating panel is available in 45 different colours.

8 Sanitary colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.
Additional colours are available on request!
8 RAL-Trendy colours
color name color code
25 RAL-Classic colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.
Additional colours are available on request!
4 Metallic colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.
Additional colours are available on request!

Accessories

Get an overview of our wide range of accessories for our convectors and heating panels.

Accessories [pdf; 0.26 MB]

In Europe, more than 40% of the CO₂ emissions are caused by buildings. To update the whole heating system is one of the most important measures, to protect our environment sustainable.

cf. Prof. Rainer Hirschberg , VDI Nachrichten, Aachen 2006

Expert opinion Reseller Search

Spotlights

Added value with modern low-temperature radiators [Many benefits with panel radiators]
- Compatible with all energy sources:
  • Range of supply temperatures from between 90 ° and less than 40 °C
  • Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)

  Enormous potential for cost reduction with new buildings & renovations:
  • Approx. 15 % less energy costs with replacement radiators
  (as comp. with old element radiators)
  • Thanks to high performance, only low system temperatures are required

  Extremely fast control in the heating-up and cooling time
  • Fast reaction time after sudden temperature changes (less energy)
  • High efficiency due to short cooling & heating-up times
  • Control is of very good quality
Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]
- Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
Factory-adjusted kv-setting [Saving of energy costs and CO2 reduction]
- Panel radiators are delivered ready for double-pipe installation and with a factory-adjusted kv-setting, appropriate to the radiator output. Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.
