VONARIS-M

Simple and flexible preassembly
through the revolutionary central
connection technology.

A real plus to planning freedom as well
as a hint of modernity and style.

Technical information Brochure Output calculator

Toggle

Overview of models Technical information Downloads Colours Accessories

Overview of models

The convectors and heating walls manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

quality marks

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type VHV-M

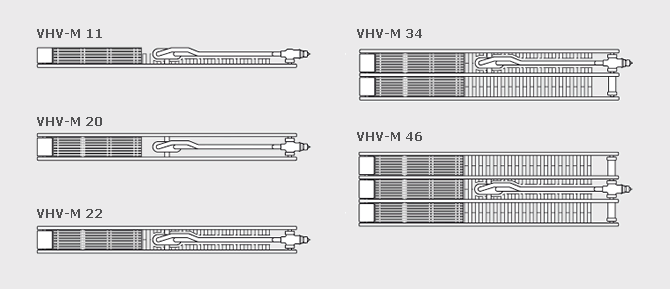

VHV-M overview of models


Model	VHV-M 11			VHV-M 20			VHV-M 22				VHV-M 34		VHV-M 46
Height	358	430	502	358	430	502	214	286	358	430	142	214	142	214
Height	574	646	790	574	646	790	502	574	646	790	286	-	286	-
Length	500 - 2400 mm
Depth	68			93			93				175		257
Increments	100 mm (for overall lengths of 1400 mm and above: 200 mm)

Connections: 2 x external thread G 3/4“, bottom centre

Test overpressure (standard design): 5 bar

Max. positive operating pressure (high-pressure design): 8 bar

Max. operating temperature: 110 °C

Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

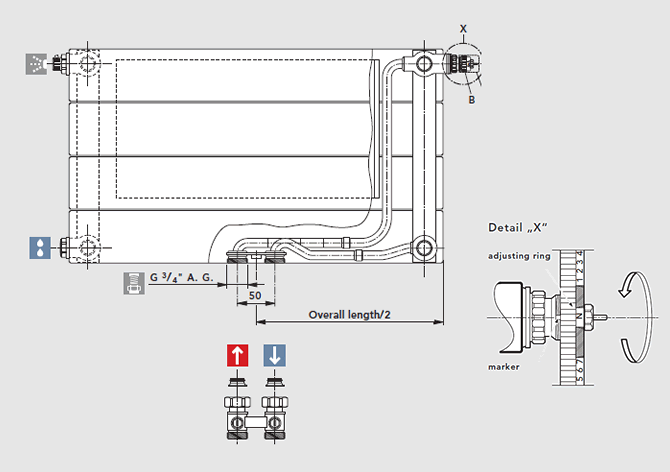

Connection modes - double-pipe operation

It is easy to set the precise values required without using any special tools (see drawings).

The radiator will be delivered with a fitted protective cap. After removing the protective cap (item A), the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“, or „RAW“ from Danfoss, „VK“ from Heimeier, „D“ from Herz, „thera DA“ from MNG, and „UNI XD“ from Oventrop.

Adjustment tips:
• Remove protective cap and sensor
• Lift the adjusting ring and turn it anti-clockwise, to the setting required –
the set value (1, 2, ...7, N) needs to be directly in line with the marker.
• Presetting is possible in steps of 0.5 between 1 and 7. The „N“setting, cancels all presetting

.

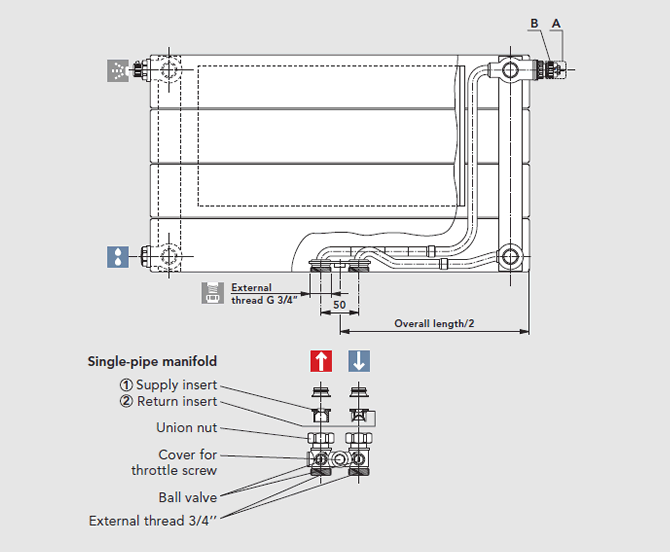

Connection modes - single-pipe operation

For VHV-M models no valve default setting is necessary, as the valve is delivered factory-adjusted (default setting "N").

The radiator valve (VHV-M models) and the connection set (VSV-M models) will both be delivered with a fitted protective cap. After removing the protective cap (item A), the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“, or „RAW“ from Danfoss, „VK“ from Heimeier, „D“ from Herz, „thera DA“ from MNG, and „UNI XD“ from Oventrop.

Please note:
During the installation of the single-pipe manifold ensure that the return insert ( 2 ) is installed in the water return, and the supply insert ( 1 ) in the water supply.

Downloads

Here you can download all relevant data in different file formats.

DXF and DWG 2D-vector graphics [zip; 2.87 MB]

Colours

The VONARIS-M is available in 45 different colours.

8 Sanitary colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.
Additional colours are available on request!
8 RAL-Trendy colours
color name color code
25 RAL-Classic colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.
Additional colours are available on request!
4 Metallic colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.
Additional colours are available on request!

Accessories

Get an overview of our wide range of accessories for our convectors and heating panels.

Accessories [pdf; 0.26 MB]
