Vertical radiator - centrally connected

The optimal solution when space is limited.

Shapely design, high heating power and
a wide range of colour options.

Technical information (german) Brochure (german) Output calculator

Toggle

Overview of models Technical information Downloads Colours Accessories

Overview of models

The radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified. Furthermore, the quality and performance data of VOGEL&NOOT panel radiators are constantly reviewed and confirmed by accredited European institutions.

Quality as a sign of maximum safety

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type 10


Height	1500	1800	1950	2100
Length	450, 600	450, 600, 750
Depth	50

Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left and right side

Test positive pressure: 8 bar

Max. positive operating pressure: 6 bar

Max. operating temperature: 110 °C

Type 20

Vertical VM TYPE 20


Height	1800	1950	2100
Length	300, 450, 600, 750
Depth	81

Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left and right side

Test positive pressure: 8 bar

Max. positive operating pressure: 6 bar

Max. operating temperature: 110 °C

Type 21

Vertical VM TYPE 21


Height	1800	1950	2100
Length	300, 450, 600, 750
Depth	81

Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left and right side

Test positive pressure: 8 bar

Max. positive operating pressure: 6 bar

Max. operating temperature: 110 °C

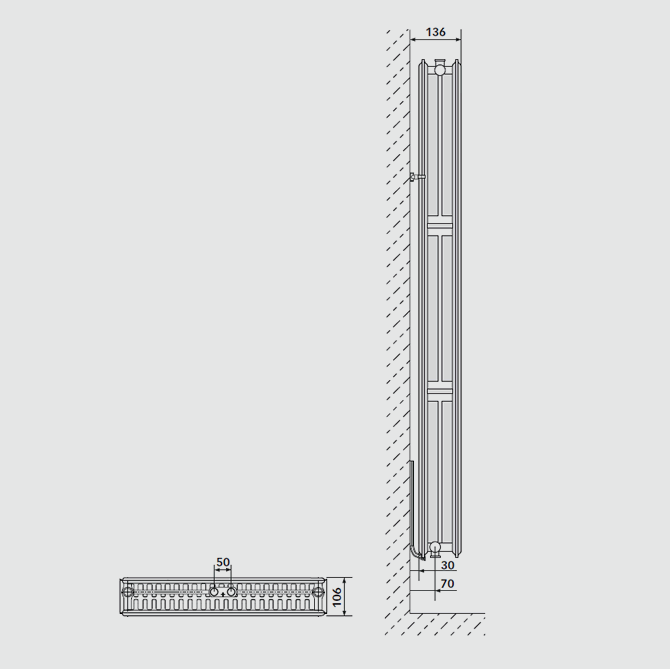

Type 22


Height	1800	1950	2100	2300
Length	300, 450, 600	300, 450, 600, 750		750
Depth	106

Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left and right side

Test positive pressure: 8 bar

Max. positive operating pressure: 6 bar

Max. operating temperature: 110 °C

Technical information

To offer the most flexible installation, the VERTICAL RADIATOR has 6 G1/2" connections.

Connections and dimensions for mounting

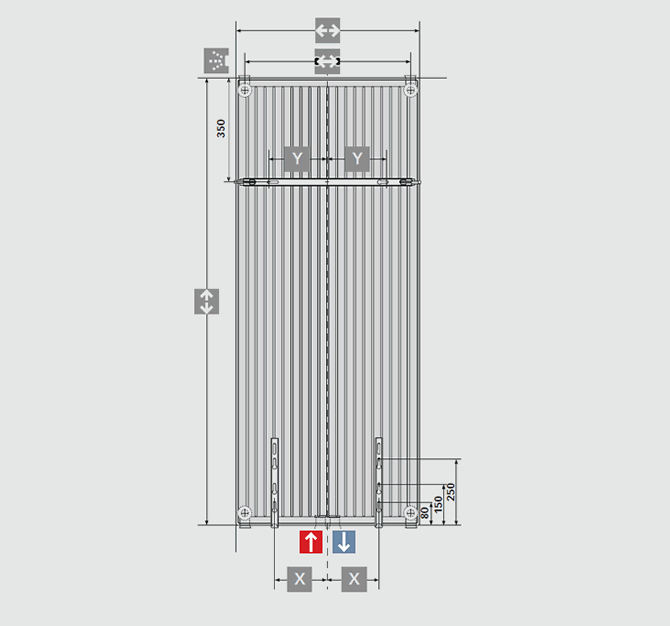

VERTICAL-VM connections


Length	300	450	600	750
	75	100	175	250
	50	125	200	275

Flow

Return

Vent plug

Technical information vertical radiators centrally connected (german) [pdf; 0.15 MB]

Downloads

Here you can download all relevant data in different file formats.

Colours

Our VERTICAL RADIATORS are available in 20 different colours.

8 Sanitary colours
color name color code
10 Standard colours
color name color code
2 Metallic colours
- Grey Aluminium
- White Aluminium
color name color code

Accessories

Accessorie is here a towel- rail.

“We have created various replacement scenarios in which a radiator replacement is carried out. With VOGEL&NOOT panel radiators, an average saving of approximately 15 % was recorded.”

DI Dr. Michael Graf is professor on the renowned technical college in Pinkafeld, Austria.

Expert Opinion Reseller search

Spotlights

Added value with modern low-temperature radiators [Many benefits with panel radiators]
- Compatible with all energy sources:
  • Range of supply temperatures from between 90 ° and less than 40 °C
  • Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)

  Enormous potential for cost reduction with new buildings & renovations:
  • Approx. 15 % less energy costs with replacement radiators
  (as comp. with old element radiators)
  • Thanks to high performance, only low system temperatures are required

  Extremely fast control in the heating-up and cooling time
  • Fast reaction time after sudden temperature changes (less energy)
  • High efficiency due to short cooling & heating-up times
  • Control is of very good quality
Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]
- Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
Factory-adjusted kv-setting [Saving of energy costs and CO2 reduction]
- Panel radiators are delivered ready for double-pipe installation and with a factory-adjusted kv-setting, appropriate to the radiator output. Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.
