SANAGA TECK
The decorative wooden column in teak blends in perfectly with natural atmos-
pheres in bathrooms.
The open and rounded shape of the heating pipes makes them particularly good
as towel rails.
Overview of models
The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.
Different dimensions and varying models. Please note: SANAGA TECK is pivotable.
-
Standard model
Lenght600 600
Height1348 1924
Depth188-198
Connections: 4 x G 1/2 internal thread (vent plugs and blind plugs are included)
Test positive pressure: 5,2 bar
Max. positive operating pressure: 4 bar
Max. operating temperature: 110 °C -

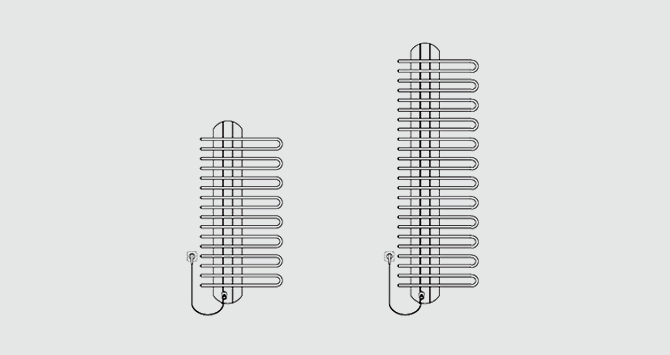

Electric model
Lenght600 600 Height1348 1924 Depth188-198 Connections: 4 x G 1/2 internal thread (vent plugs and blind plugs are included) Test positive pressure: 5,2 bar Max. positive operating pressure: 4 bar Max. operating temperature: 110 °C
Technical information
Get an overview of the most important technical data. For further information, please download the featured pdf files.
-

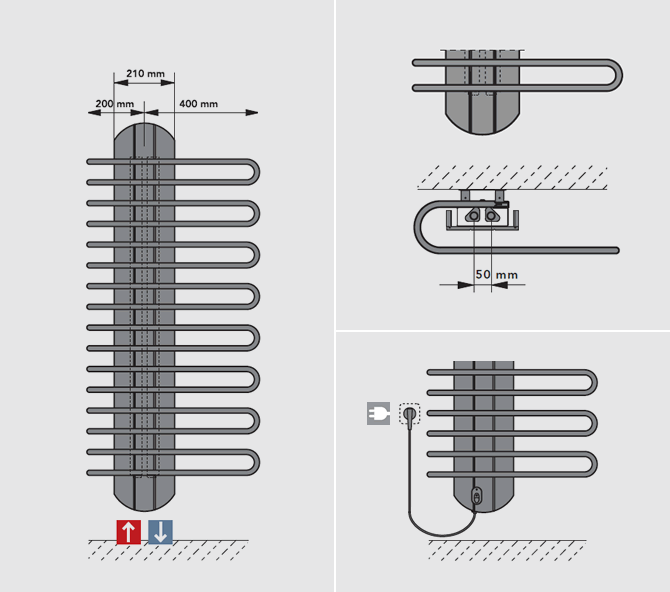

Connection examples
Flow
Return
Electric connection
Connections: 4 x G 1/2 internal thread (vent plugs and blind plugs are included) Test positive pressure: 5,2 bar Max. positive operating pressure: 4 bar Max. operating temperature: 110 °C -

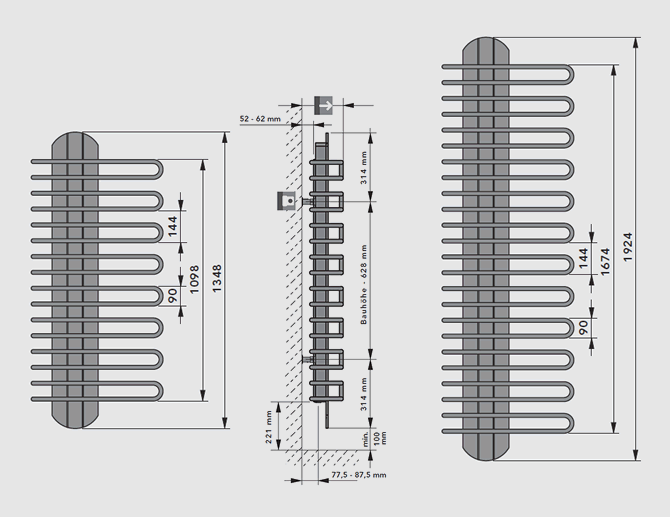

Dimensions [mm]
Downloads
Here you can download all relevant data in different file formats.
- Technical information SANAGA TECK (german) [pdf; 0.06 MB]
- Brochure SANAGA TECK [pdf; 0.33 MB]
- Brochure design radiators [pdf; 3.63 MB]
- Text for invitations of tenders [pdf; 0.03 MB]
- Mounting instructions [pdf; 0.18 MB]
