OHIO-VSM
An abstract work of art with
a high heating capacity.
The colour element can be
individually selected.
Overview of models
These high quality design radiators are made in Austria. The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.
Different dimensions and varying models, suitable for different requiremets.
-

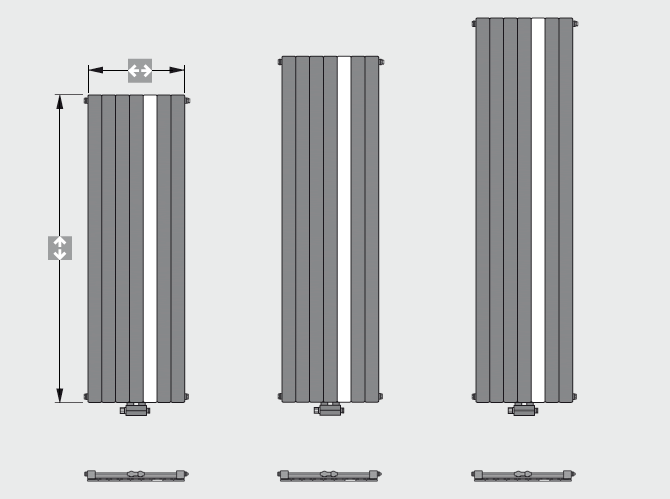

Type VSM 10
Lenght358 502 646 862
Height1600, 1800, 2000
Connections: 2 x external thread G ¾ (bottom centre)
Max. positive operating pressure (standard design): 5 bar
Max. positive operating pressure (high-pressure design): 8 bar
Max. operating temperature: 110 °CBasic standard accessories (included):
• a drain plug, G ½ and
• a pivotable vent plug, G ½, nickel-plated brass, self-sealing, factory-sealed
• a valve connection set with angled two-pipe design
• covering rosette in matching radiator colour
• installation sheet -

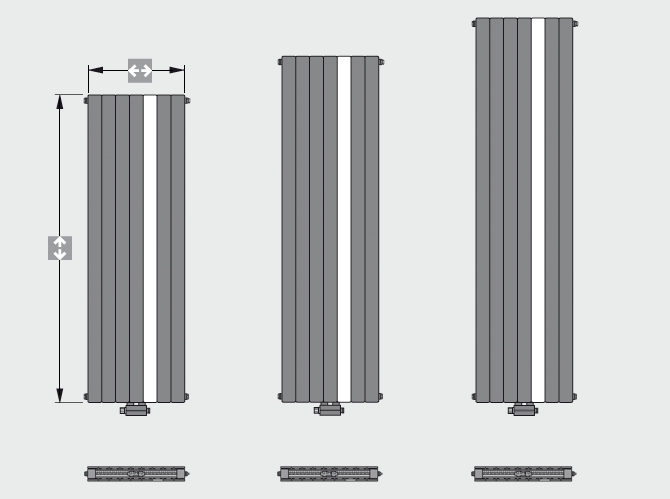

Type VSM 21
Lenght358 502 646 862 Height1600, 1800, 2000 Connections: 2 x external thread G ¾ (bottom centre) Max. positive operating pressure (standard design): 5 bar Max. positive operating pressure (high-pressure design): 8 bar Max. operating temperature: 110 °CBasic standard accessories (included):
• a drain plug, G ½ and
• a pivotable vent plug, G ½, nickel-plated brass, self-sealing, factory-sealed
• a valve connection set with angled two-pipe design
• covering rosette in matching radiator colour
• installation sheet
Technical information
Get an overview of the most important technical data. For further information, please download the featured pdf files.
-

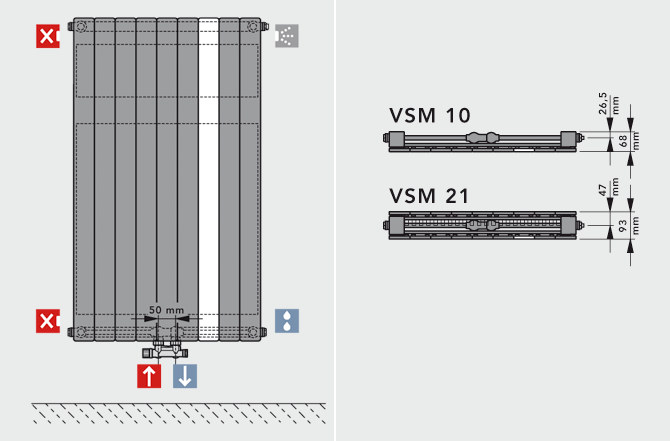

Connection examples
Flow
Return
Vent plug
Dummy plug
Boss spacing
Drain Connections: 2 x external thread G ¾ (bottom centre) Max. positive operating pressure (standard design): 5 bar Max. positive operating pressure (high-pressure design): 8 bar Max. operating temperature: 110 °C
Basic standard accessories (included):
• a drain plug, G ½ and
• a pivotable vent plug, G ½, nickel-plated brass, self-sealing, factory-sealed
• a valve connection set with angled two-pipe design
• covering rosette in matching radiator colour
• installation sheet -

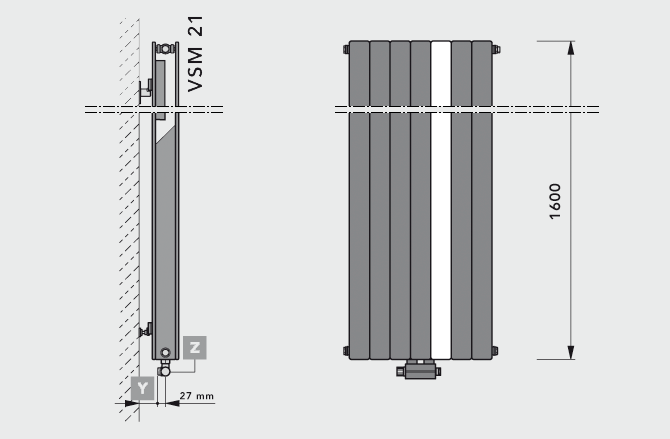

Dimensions [mm]
Downloads
Here you can download all relevant data in different file formats.
- Technical information OHIO-VSM [pdf; 0.08 MB]
- Brochure OHIO-VSM [pdf; 0.36 MB]
- Technical information design radiators [pdf; 4.37 MB]
- Brochure design radiators [pdf; 3.63 MB]
- Text for invitations of tenders [pdf; 0.05 MB]
- Mounting instructions [pdf; 0.27 MB]
- Accessories [pdf; 0.08 MB]
- Colour palette [pdf; 0.05 MB]
Colours
This design radiator is available in 45 different colours.
- 8 Sanitary colours
-
8 RAL-Trendy colours
color name color code
-
25 RAL-Classic colours
color name color code
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
4 Metallic colours
color name color code
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
Accessories
Basic standard accessories (included):
• a drain plug, G ½ and
• a pivotable vent plug, G ½, nickel-plated brass, self-sealing, factory-sealed
• a valve connection set with angled two-pipe design
• covering rosette in matching radiator colour
• installation sheet
