Colours and decors
Create your individual design radiator with more than 1.000 options. Choose from a wide range of different colours, decors, trenddecors and nature surfaces.
-

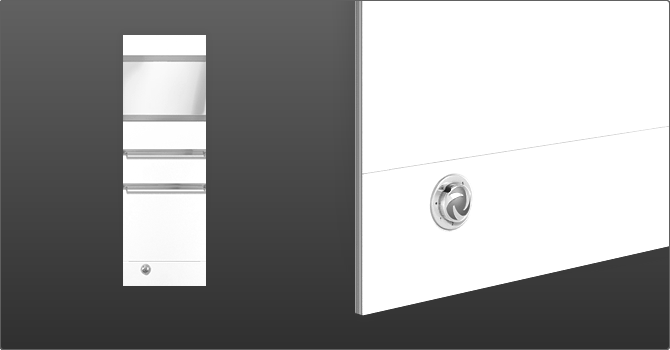

standard
Form follows function - the geometric straightness reflects the advantages of a modern lifestyle radiator. Classic white for a timeless design.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
elegance
42 RAL-colours, 21 Sanitary colours and 9 metallic colours.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-

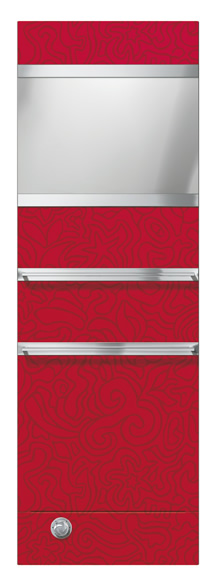

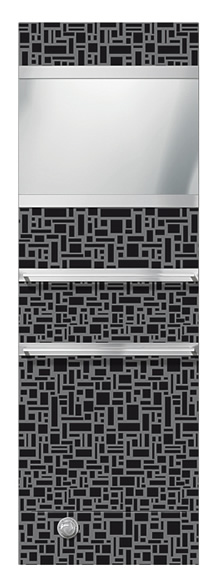

trenddecor
The four different trenddecors are available in nine colour-combinations.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-

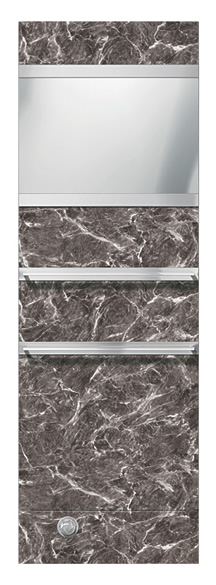

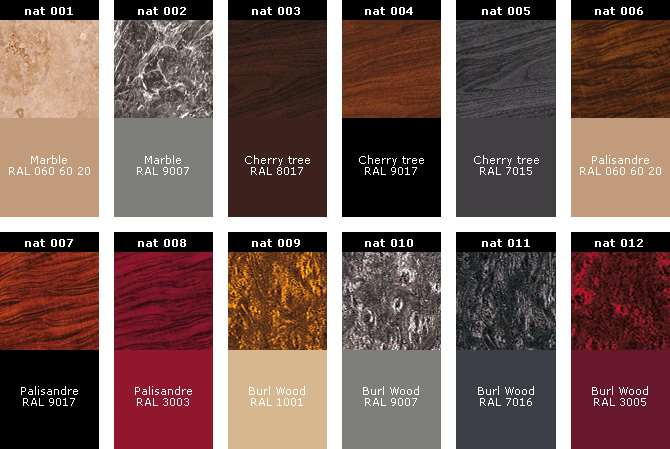

nature
The use of “natural“ surface structures makes rooms look harmonious and creates a comfortable ambience with a touch of luxury.The radiator fronts come in many popular wood and marble looks.
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
Zoom
Zoom
Zoom
Zoom
Overview of models
These high quality design radiators are made in Austria. The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.
-
Different dimensions and varying models
Length564 564 664
Height1471 1685 1685
Depth90
Technical information
Get an overview of the most important technical data. For further information, please download the featured pdf files.
-

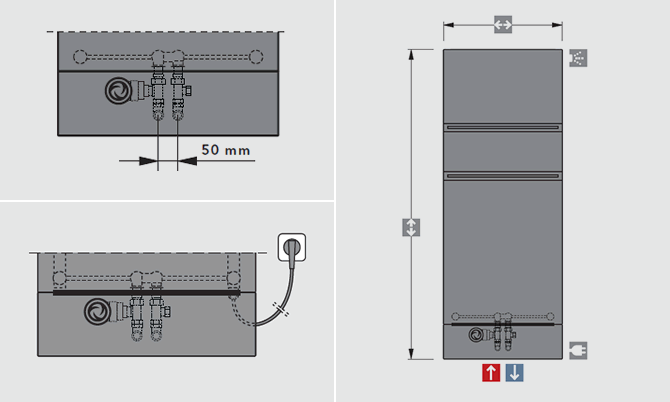

Connection examples
Connections: 2 x external thread G ¾” (valve connection set)
Maximum permissible operating pressure: 5 bar
Maximum operating temperature: 110 °C
Flow
Return
Vent plug
Electric connection
Accessory: electric heat element G 3/8
MANO Design radiators equipped with an electricheating element can also be used at times when the regular heating system is switched off.It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements.
Basic standard accessories (included):
• 1 mirror (only available with anoverall height of 1700 mm)
• 2 towel rails
• an integrated valve connection set incl. thermostat head
• a pivotable vent plug, G ¼, and
• a dummy plug, G 3/8, nickel-plated brass, self-sealing, factory-sealed
• a wall mounting set with spacers
• 2 mounting brackets, alternatively: 2 extensions
• instruction sheet -

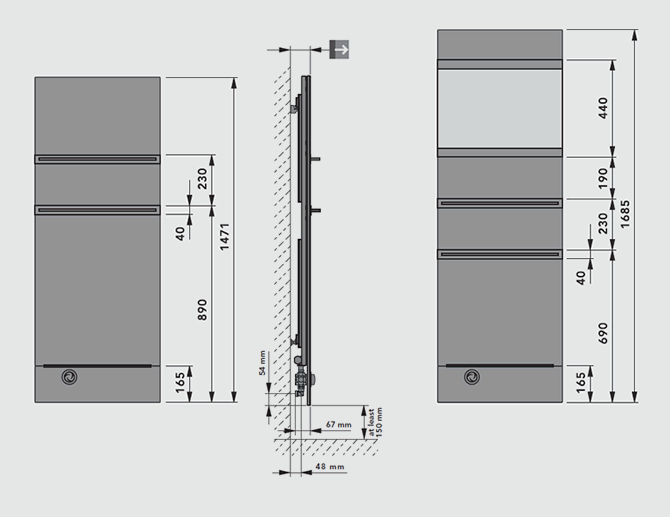

Dimensions [mm]
Downloads
Here you can download all relevant documents as PDF files.
- Technical information MANO [pdf; 0.07 MB]
- Brochure MANO [pdf; 0.07 MB]
- Technical information New Design Collection [pdf; 0.31 MB]
- Brochure New Design Collection [pdf; 0.52 MB]
- Text for invitation of tenders [pdf; 0.03 MB]
- Mounting instructions [pdf; 3.38 MB]
- Accessories [pdf; 0.08 MB]
- Colour palette and surfaces [pdf; 1.10 MB]
Accessories
Basic standard accessories (included):
• 1 mirror (only available with an overall height of 1700 mm)
• 2 towel rails
• an integrated valve connection set incl. thermostat head
• a pivotable vent plug, G ¼, and
• a dummy plug, G 3/8, nickel-plated brass, self-sealing, factory-sealed
• a wall mounting set with spacers
• 2 mounting brackets, alternatively: 2 extensions
• instruction sheet
