KONTEC
vertical design

The optimal solution when
space is limited.

Precise lines and a wide range of
capacities, sizes and colours.

Output calculator Technical information Brochure

Toggle

Overview of models Technical information Downloads Colours Accessories

Overview of models

The convectors and heating walls manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

quality marks

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type KS

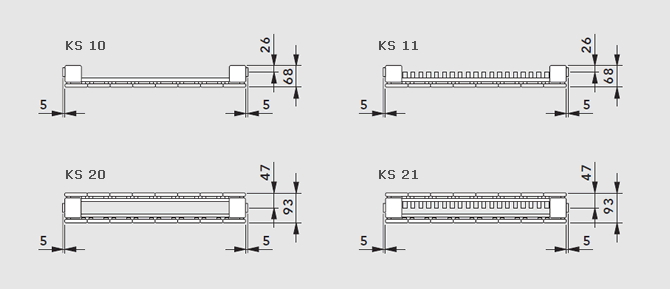

KONTEC KS overview of models


Model	KS 10		KS 11		KS 20		KS 21
Height	1600	1800	1600	1800	1600	1800	1600	1800
Height	2000	2200	2000	2200	2000	2200	2000	2200
Length	142-862 mm
Increments	72 mm

Connections: 2 x internal thread G 1/2“, welded-in for supply and return. Vent and drain plugs
(or dummy plug) are factory sealed and are fitted according to the customer’s specifications.

Test overpressure (standard design): 5 bar

Max. positive operating pressure (high-pressure design): 8 bar

Max. operating temperature: 110 °C

Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

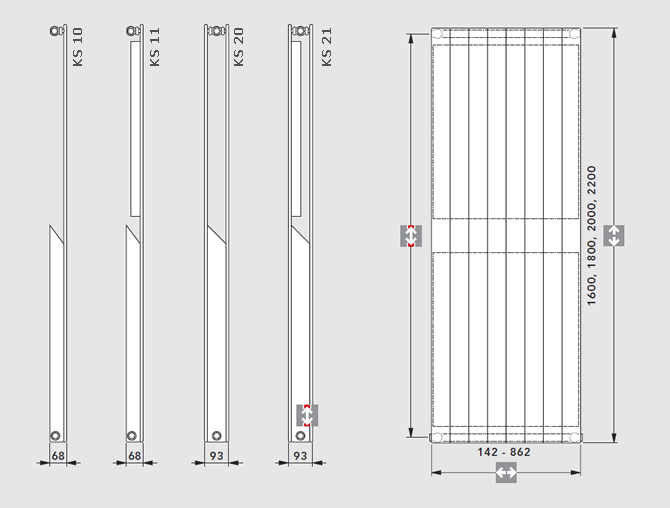

KS connection dimensions [mm]

KONTEC KS connection dimensions


Height	1600	1800	2000	2200
Boss spacing	1550	1750	1950	2150

Downloads

Here you can download all relevant data in different file formats.

DXF and DWG 2D-vector graphics [zip; 1.15 MB]

Colours

The KONTEC vertical design convector is available in 45 different colours.

8 Sanitary colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.
Additional colours are available on request!
8 RAL-Trendy colours
color name color code
25 RAL-Classic colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.
Additional colours are available on request!
4 Metallic colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.
Additional colours are available on request!

Accessories

Get an overview of our wide range of accessories for our convectors and heating panels.

Accessories [pdf; 0.26 MB]
