Overview of models

The convectors and heating walls manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

Quality marks

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type KK

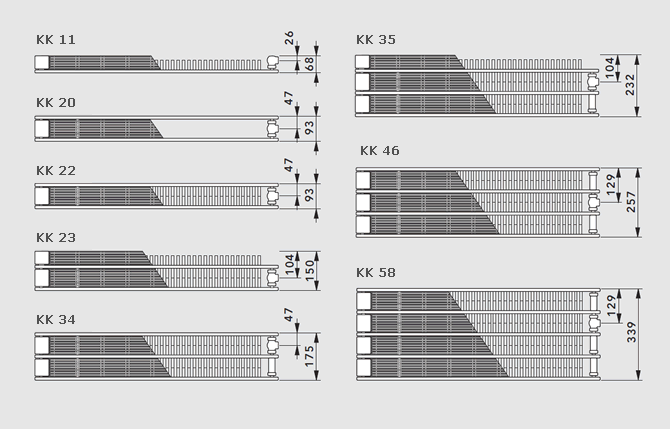

KK overview of models


Model	KK 11		KK 20		KK 22		KK 23		KK 34		KK 35		KK46		KK 58
Height	-	-	-	142	70	142	70	142	70	142	70	142	70	142	70	142
Height	214	286	214	286	214	286	214	286	214	286	214	286	214	286	214	286
Length	500 – 2400 mm (for special overall lengths see output charts), model 58 up to 2200 mm
Increments	100 mm (for an overall length of 1400 mm and greater: 200 mm)

Connections: 2 x internal thread G 1/2“, welded-in for supply and return. Vent and drain plugs
(or dummy plug) are factory sealed and are fitted according to the customer’s specifications.

Test overpressure (standard design): 5 bar

Max. positive operating pressure (high-pressure design): 8 bar

Max. operating temperature: 110 °C

Type KK-S

With their factory-welded heat reflector (no water-flow), the WVO designs return a major part of the otherwise lost heat to the room. They do so by means of convection between radiator and heat reflector.

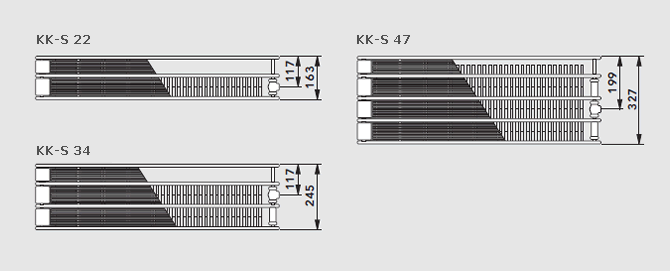

KK-S overview of models


Model	KK-S 22				KK-S 34				KK-S 47
Height	70	142	214	286	70	142	214	286	70	142	214	286
Length	500 – 2400 mm (for special overall lengths see output charts)
Increments	100 mm (for an overall length of 1400 mm and greater: 200 mm)

Connections: 2 x internal thread G 1/2“, welded-in for supply and return. Vent and drain plugs
(or dummy plug) are factory sealed and are fitted according to the customer’s specifications.

Test overpressure (standard design): 5 bar

Max. positive operating pressure (high-pressure design): 8 bar

Max. operating temperature: 110 °C

Type KH

KH overview of models


Model	KH 10			KH 11			KH 20			KH 22
Height	358	430	502	358	430	502	358	430	502	358	430	502
Height	574	646	790	574	646	790	574	646	790	574	646	790
Length	500 – 2400 mm (for special overall lengths see output charts)
Increments	100 mm (for an overall length of 1400 mm and greater: 200 mm)

Connections: 2 x internal thread G 1/2“, welded-in for supply and return. Vent and drain plugs
(or dummy plug) are factory sealed and are fitted according to the customer’s specifications.

Test overpressure (standard design): 5 bar

Max. positive operating pressure (high-pressure design): 8 bar

Max. operating temperature: 110 °C

Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

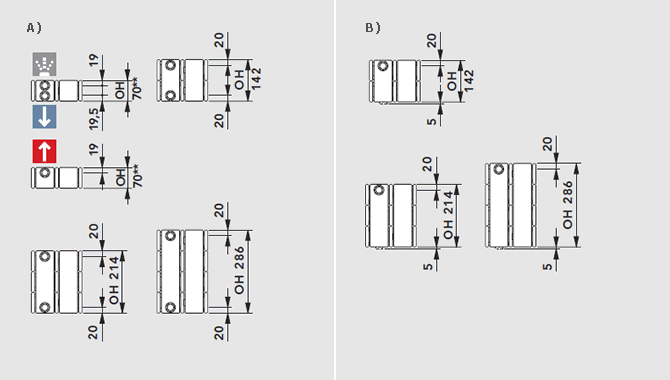

KK connection dimensions [mm]

A) Side connections
B) Connection vertically from below: Models with an overall height of 142, 214 or 286 mm can also be delivered with supply and return connections vertically from below (as special designs and with a supplementary charge)

KK overview of models


Height	70**	142	214	286
Boss spacing	32	102	174	246
Boss spacing	Overall length - 50 mm

** Only available with top-bottom, opposite ends, side-connection.
Note: with an overall height of 70 mm, vertical connection from below is not available!

Flow

Return

Vent plug

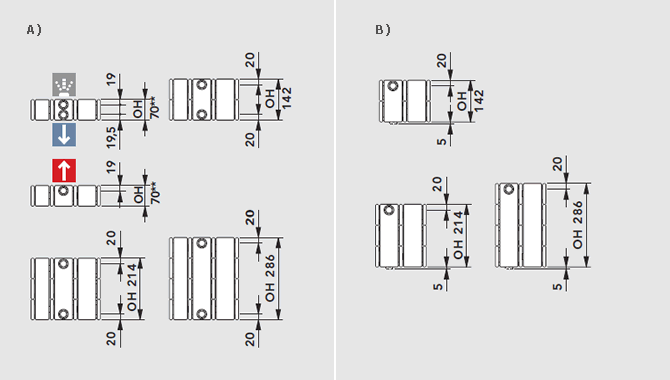

KK-S connection dimensions [mm]

KK-S connection dimensions


Height	70**	142	214	286
Boss spacing	32	102	174	246
Boss spacing	Overall length - 50 mm

** Only available with top-bottom, opposite ends, side-connection.
Note: with an overall height of 70 mm, vertical connection from below is not available!

Flow

Return

Vent plug

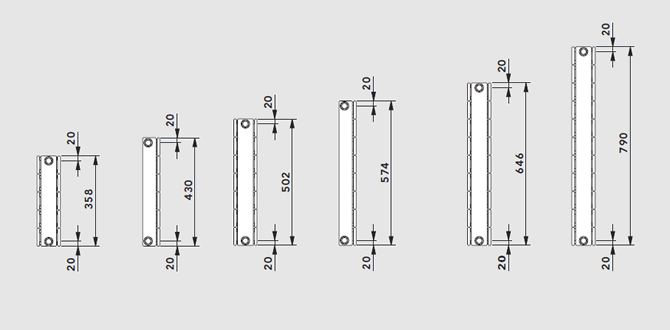

KH connection dimensions [mm]

KH connection dimensions


Height	358	430	502	574	646	790
Boss spacing	318	390	462	534	606	750

Downloads

Here you can download all relevant data in different file formats.

DWG and DXF 2D- vector graphics [zip; 11.96 MB]

Colours

The KONTEC horizontal design convector is available in 45 different colours.

8 Sanitary Colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
8 RAL-Trendy colours
color name color code
25 RAL- Classic colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
4 Metallic colours
color name color code

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!

Accessories

Get an overview of our wide range of accessories for our convectors and heating panels.

Accessories [pdf; 0.26 MB]
