GURA-T
Linear design with well-shaped
circular tubing.
Simple elegance due to the vertical
parallel geometry.
Overview of models
These high quality design radiators are made in Austria. The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.
-
Different dimensions and varying models
Lenght504, 630, 756, 882
Height1600 1800 2000
Connections: 3 x internal thread G 1/2 and 3 x internal thread G 1/4, (for vent and drain plugs)
Test overpressure: 13 bar
Max. positive operating pressure: 10 bar
Max. operating temperature: 110 °C
Technical information
Get an overview of the most important technical data. For further information, please download the featured pdf files.
-

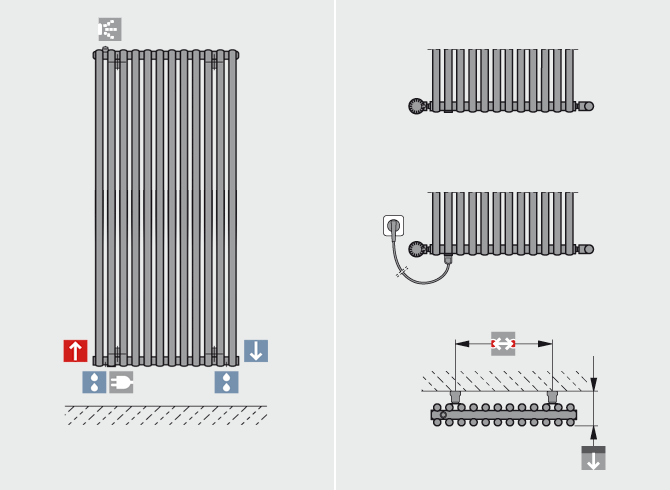

Connection examples
Flow
Return
Vent plug
Electric connection
Boss spacing
Drain Connections: 3 x internal thread G 1/2 and 3 x internal thread G 1/4 Test overpressure: 13 bar Max. positive operating pressure: 10 bar Max. operating temperature: 110 °CAccessory: PTC electric heating element
GURA radiators fi tted with an electric heating element can also be used at times when the regular heating system is switched off. It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements.Basic standard accessories (included):
• a pivotable vent plug, G 1/4 and two dummy plugs, G 1/4, as well as a dummy plug,
G 1/2, nickel-plated brass, self-sealing
• a wall mounting set matching the radiator colour
• fitting aid
• instruction sheet -

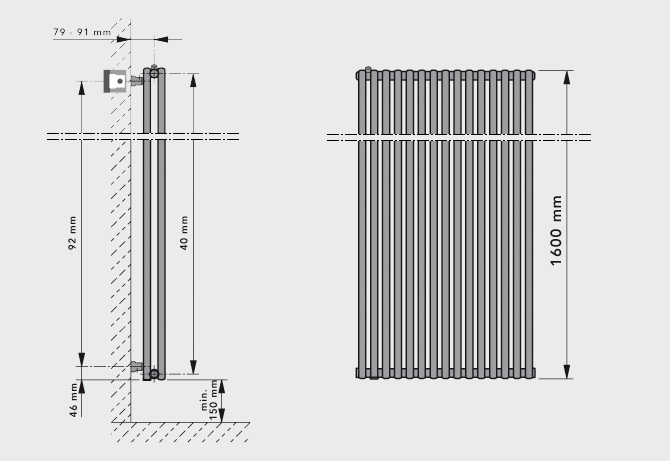

Dimensions [mm]
Downloads
Here you can download all relevant data in different file formats.
- Technical information GURA-T [pdf; 0.06 MB]
- Brochure GURA-T [pdf; 0.32 MB]
- Technical information design radiators [pdf; 4.37 MB]
- Brochure design radiators [pdf; 3.63 MB]
- Text for invitations of tenders [pdf; 0.05 MB]
- Mounting instructions [pdf; 1.16 MB]
- Accessories [pdf; 0.08 MB]
- Colour palette [pdf; 0.05 MB]
Colours
This design radiator is available in 45 different colours.
- 8 Sanitary colours
-
8 RAL-Trendy colours
color name color code
-
25 RAL-Classic colours
color name color code
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
-
4 Metallic colours
color name color code
The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!
Accessories
Basic standard accessories (included):
• a pivotable vent plug, G 1/4 and two dummy plugs, G 1/4, as well as a dummy plug,
G 1/2, nickel-plated brass, self-sealing
• a wall mounting set matching the radiator colour
• fitting aid
• instruction sheet
Get an overview of our wide range of accessories for our design radiators.
