Product info
The ECO fibreboards with holes are environmentally-friendly, efficient and practical; the system is easy to assemble and cost-efficient. In addition to the high-tech components, the system as a whole is powerful, conserves resources and reduces energy costs during operation, as well as guaranteeing the highest level of comfort.
The assembly and laying technique for the “ECO fibreboards with holes” is simple and time-saving. All of the components of the system are compatible with one another and can be assembled without tools, using the plug and clip connections. The geometrical shape and composition of the “FLOORTEC fibreboards with holes” allows the pipes to be introduced with precision at the installation intervals of your choice, according to the desired performance. Undesirable damage to the insulation material is avoided to the greatest extent possible.
Technical information
The underfloor heating systems manufactured by VOGEL&NOOT meet the internationally recognised DIN quality standards and the manufacturing processes at all of the production sites have been ISO certified. Beside that, we are member of renowned branch-specific associations.
Zoom
Zoom
Zoom
Zoom
-

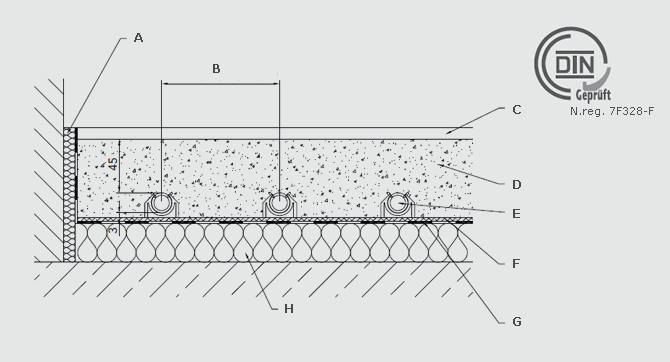

System design
A) Insulation strip
B) Laying distance (10, 15, 20, 25, 30 mm)
C) Floor cover
D) Floor (65 mm)
E) FLOORTEC Pe-X heating pipe 17 x 2 mm
F) FLOORTEC woodfibre plate 3 mm
G) FLOORTEC protective sheet
H) Insulation
Downloads
Here you can download all relevant data in different file formats.
- Technical information FLOORTEC woodfibre plate SYSTEM (german) [pdf; 0.87 MB]
- Brochure FLOORTEC woodfibre plate SYSTEM [pdf; 0.15 MB]
- DIN-certification (german) [pdf; 0.66 MB]
- Warranty (german) [pdf; 0.03 MB]
- Technical information underfloor heating systems (german) [pdf; 5.09 MB]
- Brochure underfloor heating systems [pdf; 1.72 MB]
- Text for invitations of tenders (german) [pdf; 0.04 MB]
“The problem-free operation of underfloor heating requires the use of a complete system of which all sections are consistently and meticulously coordinated to one another. In this case, a guarantee in the event of damage is more important than the financial aspect."
Bundesverband Flächenheizungen und Flächenkühlungen e.V.
Spotlights
-
Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]
-
Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
-
-
The new eco-friendly woodfibre plate system [biodegradable, local wood-resources, less CO2]
-
The new woodfibre plate system is the most eco-friendly underfloor heating system. Without admixtures, dyestuffs and whiteners it is biodegradable. Beside that, its easy to install and, like all our other systms, very energy efficient.
